Five Bolt Hub Assembly For Four And A Half Inch With Beefed Up Two One And One Sixteenth Inch Straight Spindles And Bearings Includes Castle Nuts And Cotter Pins Races Hub Four And A Half Inch Bolt Circle Pilot Diameter Two And A Half Inches Flange

Five-Bolt 4.5in Hub Assembly Pair with 1-1/16 in Spindles
✔️ 5-bolt on 4.5 inch circle, two 1-1/16 spindles, bearings

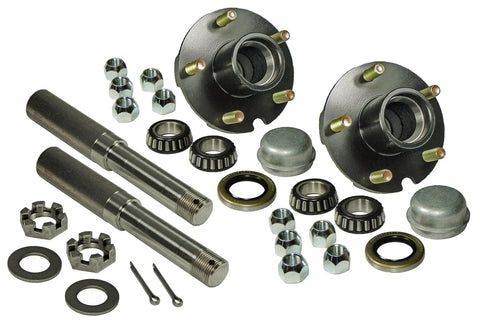

This heavy-duty trailer hub kit is designed to help you assemble or repair a trailer axle. It includes two 5-bolt hubs on a 4-1/2 inch bolt circle with pre-installed races and bearings, castle nuts, cotter pins, ten 1/2-20 lug nuts, grease seals, and dust caps. The kit is rated for up to 2,200 lb axles and comes with two 1-1/16 inch straight spindles. An optional axle pipe AK-1 is available separately.

✅ 4-1/2 in bolt circle hub with 5-bolt pattern

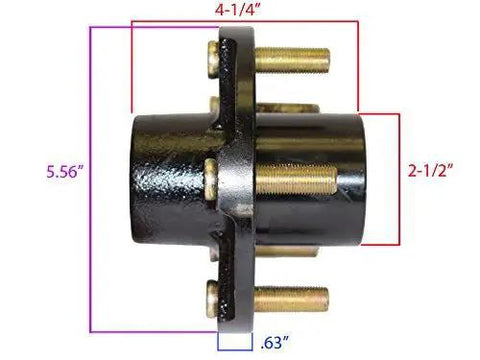

✅ Pilot diameter 2-1/2 in; flange diameter 5.56 in; height 4-1/4 in
✅ Bearings included: four L-44649 1-1/16 in ID

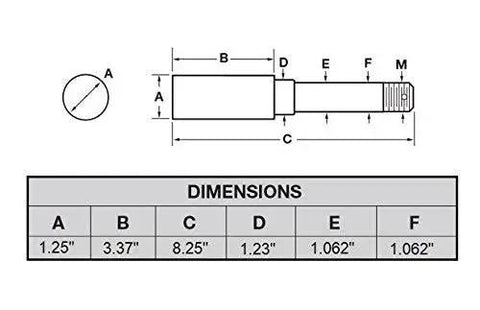

✅ Spindles feature a round 1-1/4 in stock diameter with a bearing surface of 1-1/16 in

💡 What is a five-bolt hub assembly used for on a trailer axle? This handy piece helps ensure reliable wheel mounting on standard trailer setups.
- Secure wheel mounting for easy service
- Works with 4-1/2 inch bolt circle hubs and 2,200 lb axles
- Includes bearings, pressed-in races, and mounting hardware
- Easy to swap worn hubs with basic tools
