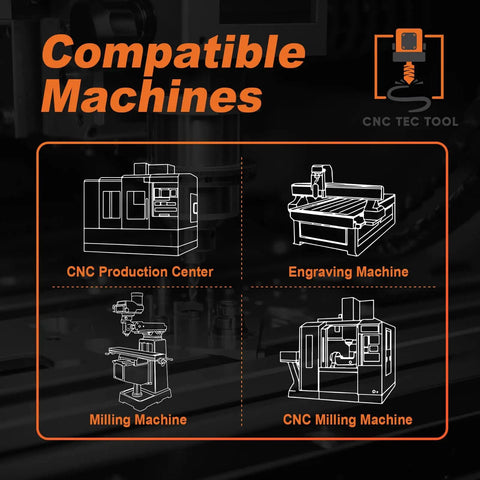

Diagram showing compatible machines: CNC Production Center, Engraving Machine, Milling Machine, CNC Milling Machine.

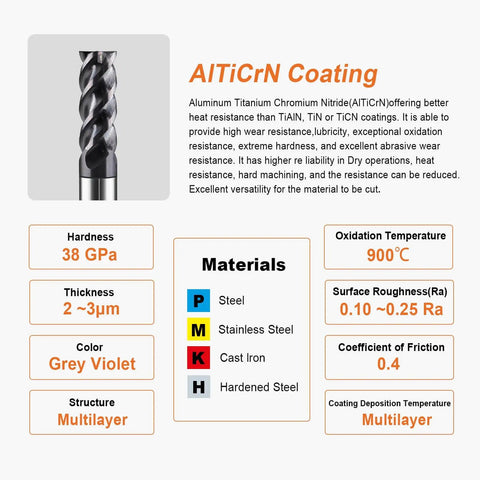

Five Eighths Inch Four Flute Square End Mill With Forty Five Degree Helix Carbide End Mill Pro Grade AlTiCrN Coated details

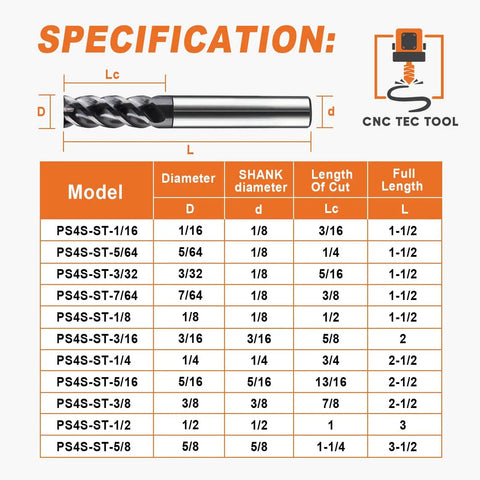

Specifications chart showing dimensions for Five Eighths Inch Four Flute Square End Mill With Forty Five Degree Helix Carbide End Mill Pro Grade AlTiCrN Coated For Milling Alloy Steels And Hardened Metals HRC 50 Ideal For Roughing And Finishing In Metalworking Projects.

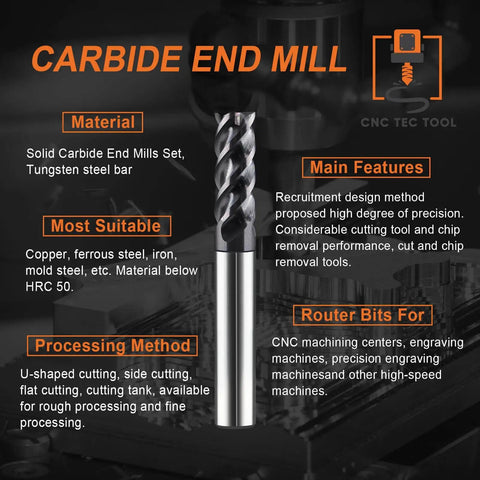

Five Eighths Inch Four Flute Square End Mill With Forty Five Degree Helix Carbide End Mill Pro Grade AlTiCrN Coated for metalworking

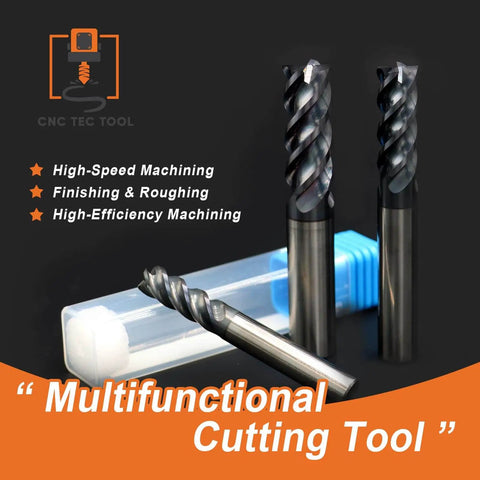

Three Five Eighths Inch Four Flute Square End Mills with Forty Five Degree Helix and AlTiCrN Coating for Metalworking

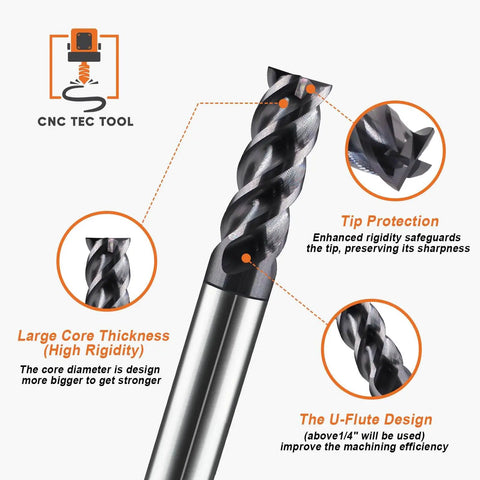

Close-up of five eighths inch four flute square end mill with forty five degree helix carbide end mill, Pro Grade AlTiCrN coated.

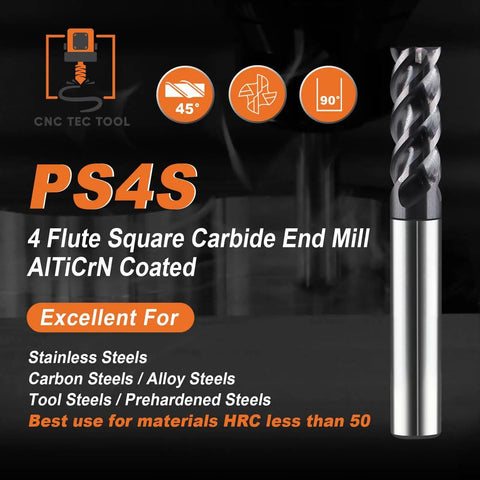

Image of PS4S 4 flute square carbide end mill with AlTiCrN coating for alloy and hardened steels, featuring a 45-degree helix design.
Bearings Canada

Five Eighths Inch Four Flute Square End Mill With Forty Five Degree Helix Carbide End Mill Pro Grade AlTiCrN Coated For Milling Alloy Steels And Hardened Metals HRC 50 Ideal For Roughing And Finishing In Metalworking Projects


$123.73 CAD $190.35 CADyou save $66.62 CAD
SKU: VXB0CJNGZMXQ
UPC:






Premium 5/8 in dia 4-Flute Square End Mill with AlTiCrN
✔️ 1 Pc, 5/8 in dia, 4 flute, 45° helix, AlTiCrN coating

Designed for metalworking, this carbide end mill features an AlTiCrN coating for improved heat resistance and wear life, ideal for roughing and finishing alloy steels and hardened metals. It's commonly used on stainless steel, carbon steel, cast iron, and other hard materials.

✅ Diameter: 5/8 in (15.875 mm)
✅ Flutes: 4
✅ Helix angle: 45 degrees
✅ Coating: AlTiCrN
✅ Tolerance: cutting diameter tolerance -0.02 mm
✅ Material: carbide
✅ Use: milling alloy steels and hardened metals up to HRC 50

💡 What is a carbide end mill used for in metalworking? This handy tool helps shape, profile, and finish parts. - Handy for roughing and finishing alloy steels and hardened metals - Useful for planar, step, groove, and forming surfaces - AlTiCrN coating boosts heat resistance and wear life for dry milling
