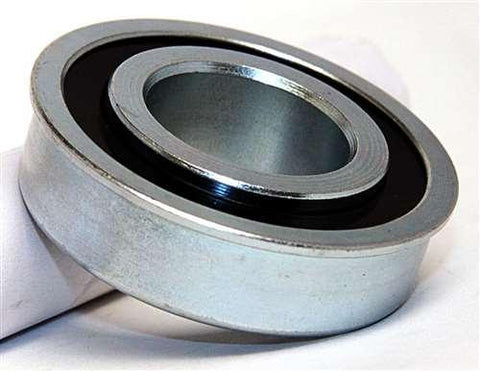

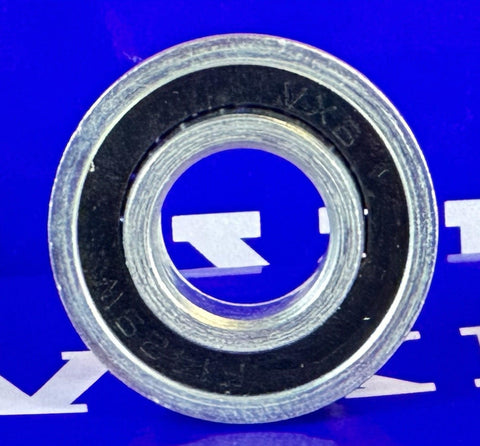

Flanged Heavy Duty Ball Bearing 7/16" x 29/32" x 7/16" inch
UPC: 00193019042878
Type: Unground Flanged Ball Bearing
Size: 7/16" x 29/32" x 7/16" Inch
Size: 0.438" x 0.906" x 0.438" Inch
Balls Size: 1/8

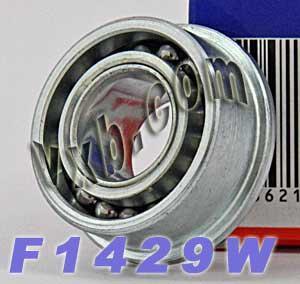

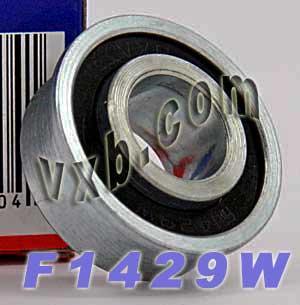

F1429W Flanged Full Complement Ball Bearing
✔️ Heavy Duty - 7/16" x 29/32" x 7/16" - No Cage Design

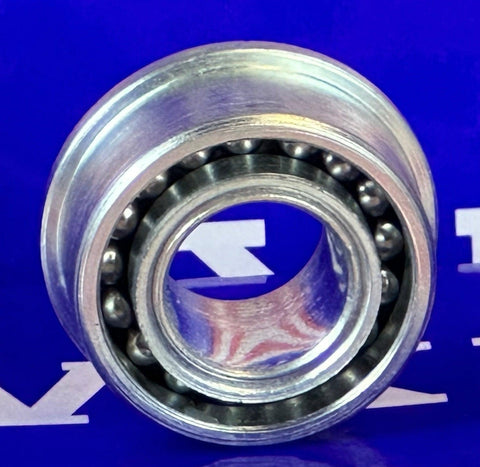

The F1429W is a flanged, heavy-duty ball bearing with a full complement of balls - meaning no cage for maximum load capacity. It’s ideal for rugged applications where strength, support, and a compact design are essential. This listing includes one bearing.
✅ Bearing type: Flanged ball bearing (full complement, no cage)
✅ Model: F1429W
✅ Bore diameter: 7/16" (0.438")
✅ Outer diameter: 29/32" (0.906")
✅ Inner ring width: 7/16"
✅ Outer ring width: 3/8"
✅ Flange width (G): 1"
✅ Ball size: 1/8"
✅ Quantity: 1 bearing
Dimensions Table (Inches):
| Bore (ID) | OD | Inner Width | Outer Width | Flange (G) |
|---|---|---|---|---|
| 7/16" | 29/32" | 7/16" | 3/8" | 1" |
💡 What is a full complement bearing and when should you use it?
Full complement bearings use more rolling elements than caged designs, offering higher load capacity at the cost of slightly reduced speed. They’re ideal for tough, low-to-moderate speed environments where durability and load strength are top priorities.
Tough job? This bearing’s got your back - load it up and roll with confidence!
