Hudson

FSBT-1 1/2 CS/SS Ball Transfer 1-1/2 Main Ball Ball Transfer Units


$91.64 CAD
SKU: Kit12381
UPC: 00193019083345
Item: FSBT-1 1/2 CS/SS Ball Bearing
Type: Ball Transfer unit
Ball Material: Stainless
Housing Material: Carbon Steel
Support Ball: Stainless

FSBT-1 1/2 CS/SS Ball Transfer Unit
1-1/2" Main Ball
Proudly made in the USA


FSBT-1 1/2 CS/SS Ball Transfer Unit, the main ball is 1-1/2" Inch, FSBT-1 1/2 CS/SS Can be recessed into the surface of the application forming a smooth and multi-directional rolling surface, Unit available with carbon steel balls or stainless steel balls to provide corrosion resistance.

  • Item: FSBT-1 1/2 CS/SS Ball Bearing
  • Type: Ball Transfer unit
  • Ball Material: Stainless
  • Housing Material: Carbon Steel
  • Support Ball: Stainless
  • Dimensions: 3-21/32" Dia x 1-13/16" H
  • Hole Size: Two 9/32"
  • Load Capacity: 200 LBS
  • Quantity: One Bearing
  • Brand: Hudson Bearings
  • Made in the USA

Features

  • Versatile, Steel and compact Bearing
  • Precision-formed steel housing
  • Integral mounting holes for ease of installation

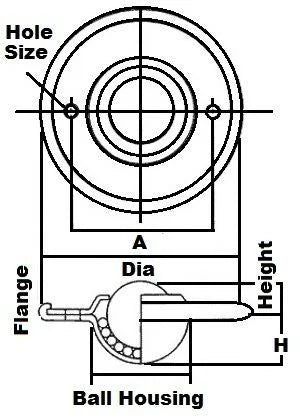

Dimensions (Inches)
Dia A H Height Flange Ball Housing Hole Size
3-21/32" 2-3/4" 1-13/16" 1-9/64" 9/32" 2" 9/32"
