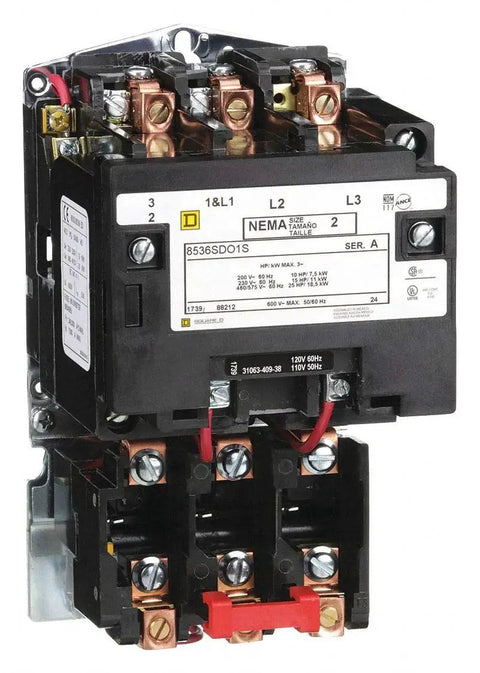

Full Voltage Motor Starter For 120V AC Coil Built For 1 And 3 Phase Motors NEMA Size 2 With Trip Free Overload Relay Open Enclosure Normally Open Holding Circuit And Angled Contacts Model 8536SDO1V02S Square D

Full voltage motor starter, 120V coil, NEMA size 2
✔️ 3-pole, 120 VAC coil, open enclosure, trip-free overload relay

This full voltage motor starter is designed to start and stop 1- and 3-phase AC motors in industrial control panels and motor control centers. It features a trip-free overload relay for reliable protection, angled contacts for high seating pressure, and an open enclosure with a normally open holding circuit for 3-wire control. Class 20 protection is standard.

✅ Amps AC: 45
✅ Coil Volts: 120 VAC
✅ NEMA Size: 2
✅ Poles: 3
✅ Enclosure: No Enclosure
✅ Action: Nonreversing
✅ HP @ 3 Phase - 240V: 15
✅ HP @ 3 Phase - 480V: 25
✅ HP @ 3 Phase - 208V: 10
✅ HP @ 3 Phase - 575V: 25
✅ Height: 7.81"
✅ Width: 4.31"
✅ Depth: 4.94"

💡 What is a full voltage motor starter and why choose one with trip-free overload protection?

Handy for protecting and controlling motors in industrial setups:

- full voltage motor starter with 120 VAC coil for 1- and 3-phase motors - trip-free overload relay ensures protection even if the reset is blocked - compact NEMA size 2 unit fits standard control panels - open enclosure with angled contacts provides reliable seating and high contact pressure
