FYH

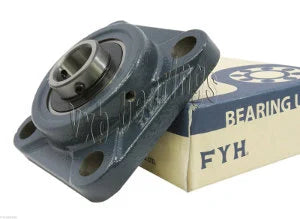

FYH Bearing UCF212 60mm Square Flanged Mounted Bearings


$327.11 CAD
SKU: Kit11562
UPC: 00193019078372
Item: UCF212 Bearing
Type: Four bolt Flanged Bearing
Bolt Size: M16
Basic Load Dynamic (Cr): 52,400 N
Basic Load Static (Cor): 36,200 N

UCF212 FYH Bearing
Square Flanged Mounted Bearing
Cylindrical bore (with set screws)
60mm Inner Diameter


This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment. Applications are Rotating drum, rotating roller and when precise mounting accuracy is required.

  • Item: UCF212 Bearing
  • Type: Four bolt Flanged Bearing
  • Bolt Size: M16
  • Basic Load Dynamic (Cr): 52,400 N
  • Basic Load Static (Cor): 36,200 N
  • Bearing No: UC212
  • Quantity: One Bearing


Dimensions (mm)
d L A J N A1 A2 A0 B S
60 175 48 143 19 18 29 68.7 65.1 25.4
