FYH Bearing UCF313 65mm Square Flanged Mounted Bearings
Title
$602.06 CAD
SKU: Kit11565
UPC: 00193019078396
UPC: 00193019078396
Item: UCF313 FYH Ball Bearing
Type: Mounted FYH Ball Bearing
Bolt Size: M20
Bearing Inner Diameter: 65mm
Bearing No: UC312
Type: Mounted FYH Ball Bearing
Bolt Size: M20
Bearing Inner Diameter: 65mm
Bearing No: UC312
UCF313 Square Flanged Mounted FYH Bearing Cylindrical bore (with set screws) 65mm Inner Diameter Bearing |
This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications Rotating drum, rotating roller, precise mounting accuracy is required
|

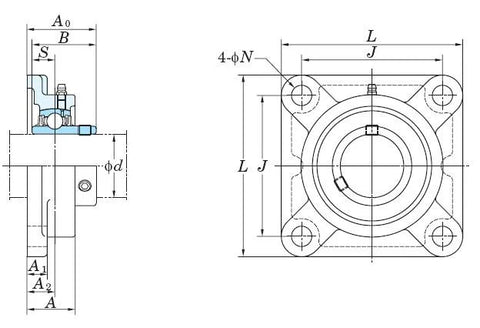

Dimensions (mm) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
d | L | A | J | N | A1 | A2 | A0 | B | S | ||||
65 | 208 | 58 | 166 | 23 | 22 | 33 | 78 | 75 | 30 |
