Geared Nema 14 Stepper Motor With Integrated Planetary Gearbox 50.9 To 1 Ratio, 1.8 Degree Step, Two Phase High Torque 0.26 Nm, Bipolar 1.2 A, 2.7 Ohm, 80 mm Body, 4 Lead, Shaft 20 mm by 8 mm, 1 m Cable, Ideal For 3D Printer CNC DIY

Premium NEMA 14 Geared Stepper Motor for Precision CNC
✔️ 50.9:1 ratio, 1.8° step angle, 26 Ncm torque at 1.2A for 3D printers

This geared stepper motor combines a NEMA 14 frame with an integrated planetary gearbox, making it a solid choice for precise motion control in 3D printers, CNC machines, and DIY robotics projects where reliable torque is key.

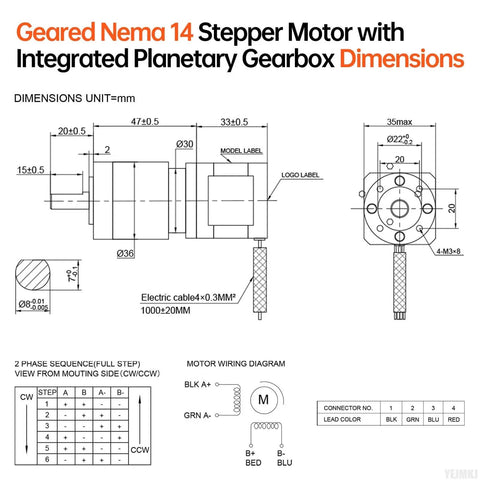

✅ 35mm x 35mm x 80mm body size, 20mm shaft length with 8mm diameter
✅ 50.9:1 gearbox ratio, 1.8-degree step angle, holding torque of 26 Ncm
✅ Rated at 1.2A, 2.7Ω resistance, includes 1m cable and weighs 449g
✅ Operates from -20°C to 50°C, dielectric strength of 500V AC

💡 Why are geared stepper motors essential for high-precision machinery? For starters, they boost torque while keeping things compact and efficient. Here's how they stand out: - Increase output torque for handling heavy loads without skipping steps - Provide smoother operation at lower speeds, ideal for detailed CNC work - Help reduce overall system size in tight spots like 3D printer setups - Offer better energy efficiency by matching motor speed to application needs
