Geared Nema 17 Stepper Motor With Integrated Planetary Gearbox 13.73:1 Ratio, 2 Phase, 1.8 Degree Step, 0.55Nm Torque, Heavy Duty Bipolar, 2 Ohm Coil, 1.7A, 83mm Long Body, 4 Lead Wires, 20mm Shaft, 8mm Shaft Diameter, 1m Cable, Great For 3D Printer CNC

Geared NEMA 17 Stepper with 13.73:1 gearbox (single)

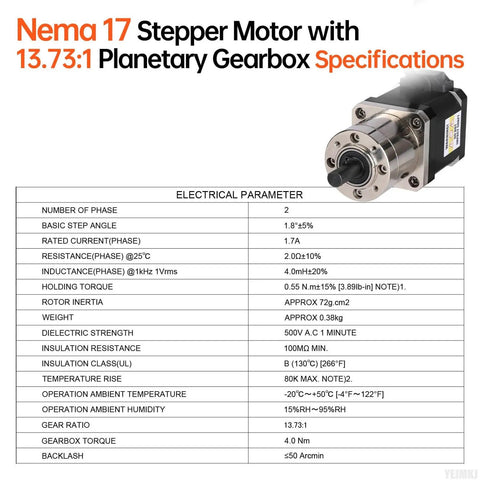

✔️ 13.73:1 gear ratio, 1.8° step, 0.55Nm torque, 83mm body

The geared NEMA 17 stepper motor with integrated planetary gearbox is designed for compact, high-torque motion control. It's ideal for 3D printers, CNC routers, and robotics where space is tight and precise movement matters.

✅ 13.73:1 planetary gearbox ratio
✅ 1.8° step angle (200 steps/rev)
✅ 0.55Nm holding torque
✅ 2.0Ω coil resistance; 1.7A rated current
✅ 4.0mH inductance

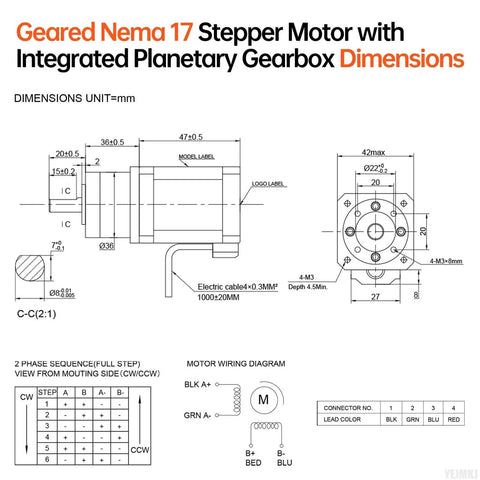

✅ Shaft Ø8mm, 20mm length; 42x42x83mm body
✅ 583 g weight; 1 m cable included
✅ 4 lead wires color-coded A+ (Black), A− (Green), B+ (Red), B− (Blue)

💡 What is a geared NEMA 17 stepper motor used for in precision motion control? This handy guide explains its common uses and benefits. - Handy for compact projects like 3D printers and CNC mills - Provides higher torque and smoother, quieter motion - Easy mounting with standard 42mm frame and 8mm shaft
