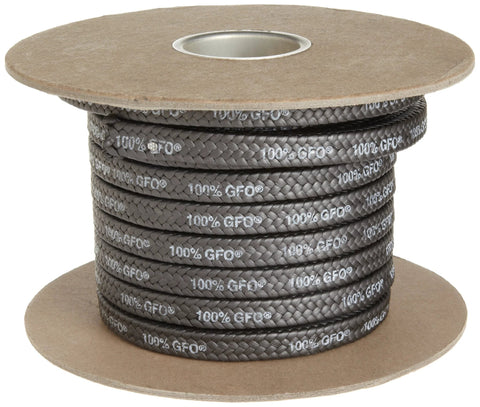

Expanded PTFE Graphite Filled Heavy Duty Compression Packing Seal For Pumps And Valves 0.25 Inch Square 5 Foot Length 100 Percent GFO EPTFE Yarn With Graphite Lubricant For Harsh Chemicals And Heat Dissipation

Heavy-Duty Graphite-Filled PTFE Packing Seal for Pumps
✔️ 0.25 in (6.35 mm) square cross-section, 5 ft (1.524 m) long, graphite-filled ePTFE

This expanded PTFE graphite-filled compression packing seal protects pumps, valves and other equipment from fluid leaks in general service and light slurry applications. The braided packing is made from 100% GFO ePTFE yarn heavily loaded with ultra-pure graphite powder to absorb lubricant, transfer heat away from the shaft, and reduce wear on high-speed shafts. An inert Matrix lubricant improves break-in time and minimizes frictional heat for longer packing life.

✅ Maximum pressure rating: 1,900 psi (131 bar)
✅ Temperature range: -400°F to 550°F (-240°C to 288°C)
✅ pH range: 0-14 (except strong oxidizers in 0-2)
✅ PV factor 650,000; shaft speed up to 4,300 fpm (21.8 m/s)

💡 What is a heavy-duty PTFE graphite packing seal used for in pumps and valves? This handy sealing option is commonly used in rotating equipment operating under high speeds and challenging chemical conditions. - high temperature and chemical resistance for pumps, valves, mixers - helps reduce leak-off on irregular surfaces with porous ePTFE yarn - graphite enhances heat dissipation and shaft wear protection - compatible with wide pH ranges 0-14 (excluding strong oxidizers 0-2)
