Go To Compact 22mm Flange Slip Ring With 2A Current Rating, 2,4,6,8,12,18,24 Channel Options, Conductive Ring Brush Rotary Electrical Joint That Keeps Power And Signal Rolling Smoothly During Rotation For Rotating Equipment
UPC:

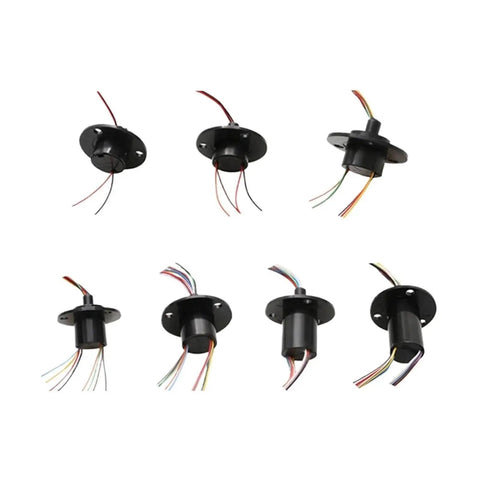

✔️ 2A per channel, 22mm diameter, channels 2/4/6/8/12/18/24

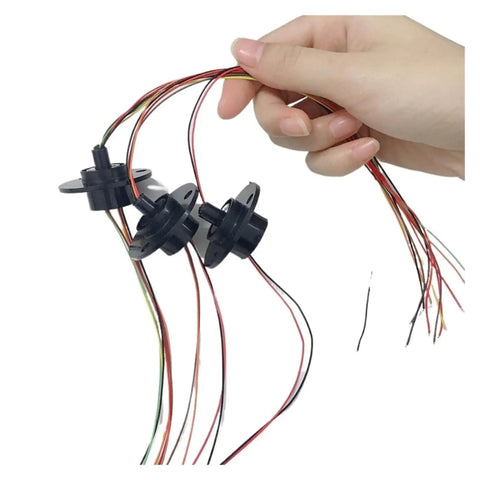

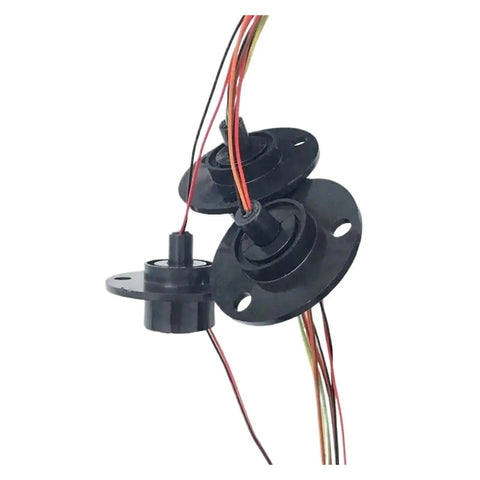

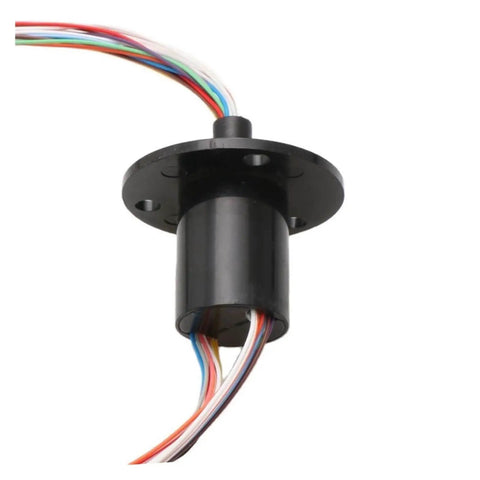

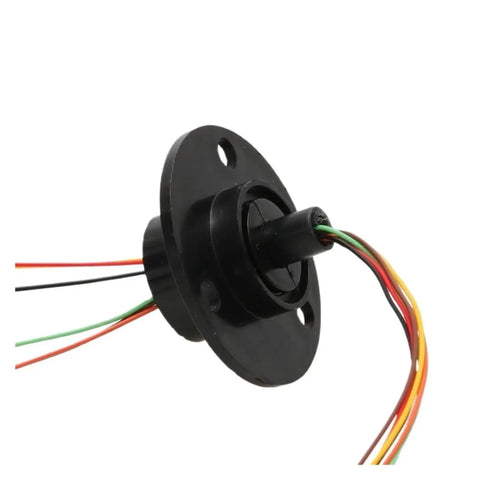

The compact 22 mm flange slip ring is a rotary electrical joint designed to transfer power and signals between stationary and rotating parts. It's widely used in rotating equipment such as turntables, robotic arms, process equipment, and other devices where continuous motion requires reliable connectivity.

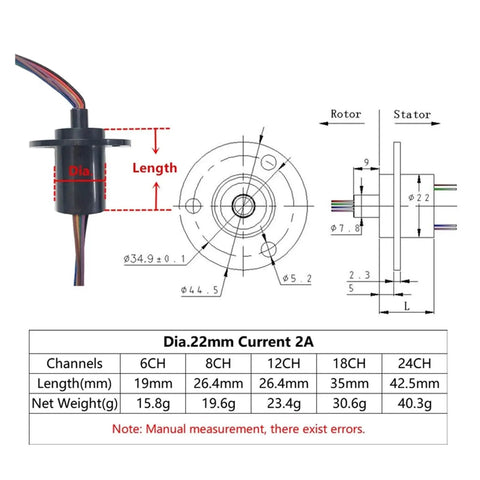

✅ Diameter: 22 mm
✅ Max speed: 200 rpm
✅ Channels: 2/4/6/8/12/18/24 (2A per channel)
✅ Rated voltage: 220 VAC/DC
✅ Cable length: 200 mm
✅ Contact material: Gold/Gold
✅ Withstand voltage: 500 V 50 Hz between channels
✅ Insulation resistance: 1000 MΩ / 500 VDC
✅ Working temperature: -20 to +60 C
✅ Shell material: Engineering plastic
✅ Lifetime: up to 5 million rpm (depending on environment)
💡 What is a handy question to ask when selecting a compact 22mm slip ring for rotating equipment? This handy device helps you match the load and rotation needs.
- Long-term reliability under continuous rotation
- Channel count and current rating alignment with your load
- Mounting and cable length compatibility
