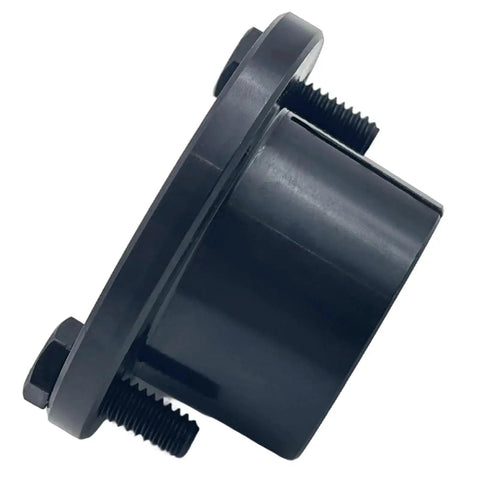

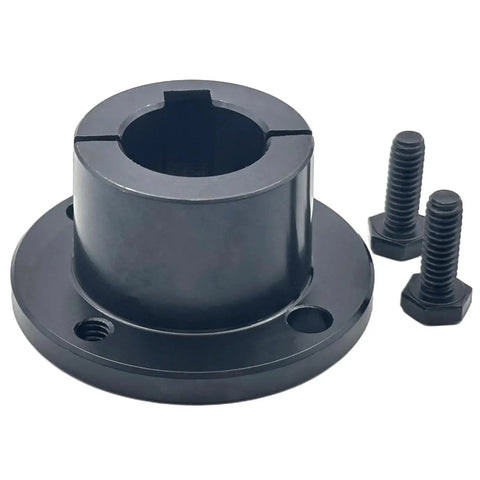

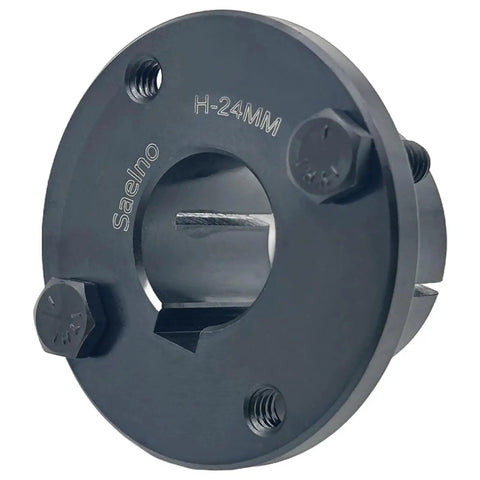

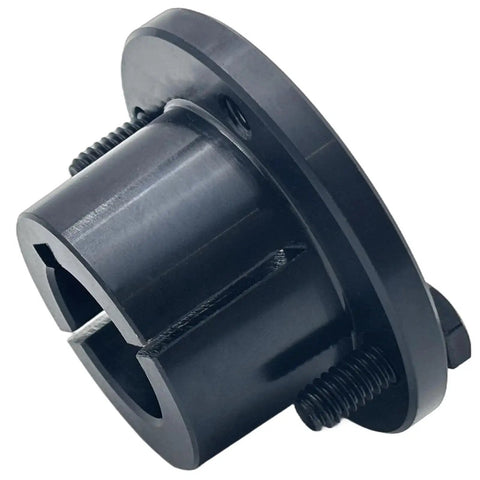

H Style 24mm Split Taper Bushing For Pulleys And Sheaves, Carbon Steel Locking Bushing With 24 Mm Bore, Keyseat 8x3.3, Black Oxidized Finish For Rust Resistance, Fixed Bore Heavy Duty H Type Taper Pulley Locking

H-Type 24mm Split Taper Bushing for Pulleys (1 pc)
✔️ 24 mm bore, 8x3.3 keyseat, carbon steel, black oxide finish

This locking bushing locks H-type taper pulleys and sheaves onto a 24 mm shaft, delivering a secure drive connection in belt systems and industrial machinery.

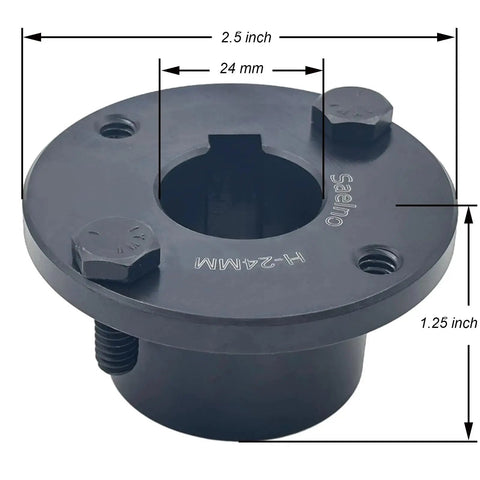

✅ Shaft diameter: 24 mm (0.945 in)
✅ Keyseat size: 8x3.3 mm (0.315 x 0.130 in)
✅ Material: ASTM 1045 carbon steel
✅ Finish: black oxide for rust resistance
✅ Screws: 2 pcs, 1/4-20 UNC x 3/4 in (19.05 mm)

💡 What is a locking bushing used for in pulley systems?

Locking bushings provide a secure, handy interface between a pulley and shaft, keeping alignment under load.

- Handy method to lock pulleys onto 24 mm shafts

- Improves belt drive alignment and reduces slip under load

- Easy installation with two bolts and clamping action

- Durable carbon steel with rust-resistant black oxide finish
