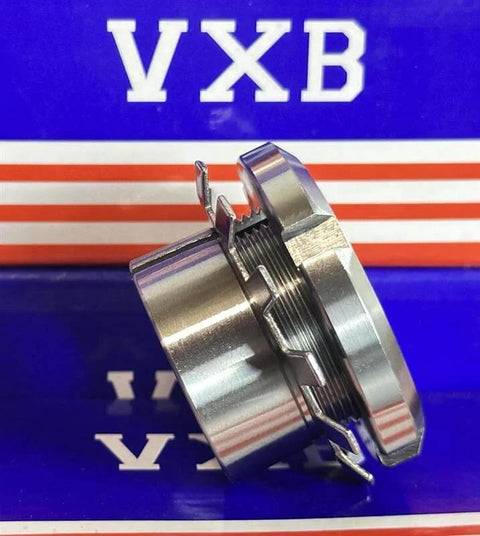

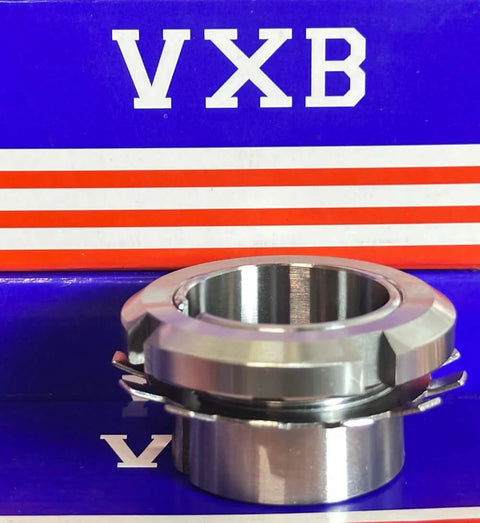

H209 40mm Adapter Sleeve w/Lock Nut & Washer
$26.61 CAD
$35.93 CADyou save $9.32 CAD
SKU: H209-Adapter-Sleeve
UPC:
UPC:
🔧 H209 Adapter Sleeve - Technical Specifications
| Parameter | Value |
|---|---|
| Designation | H209 |
| Suitable Shaft Diameter (d) | 40 mm |
| Bore of Bearing (d1) | 45 mm |
| Thread (G) | M40×1.5 |
| Width (B1) | ~42 mm (may vary slightly) |
| Locknut | KM9 |
| Locking Washer | MB9 |
| Approx. Weight | ~0.3 - 0.35 kg |

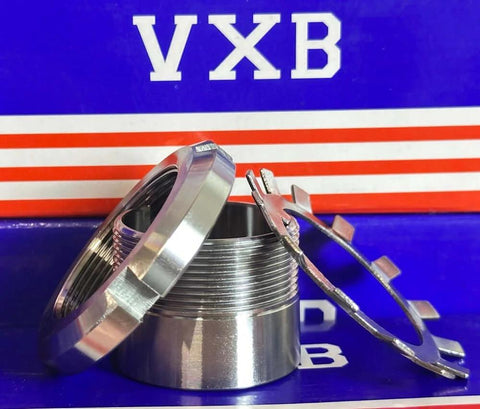

📦 What's Included
-
H209 Adapter Sleeve
-
Locknut (KM9)
-
Locking Washer (MB9) or tab washer
🧱 Material & Finish
-
Constructed from high-strength carbon or alloy steel
-
Typically phosphate-coated, black oxidized, or zinc plated for corrosion resistance
⚙️ Applications
Mounts tapered bore bearings on plain cylindrical shafts, especially:
Compatible Bearings:
-
Self-aligning ball bearings (e.g., 1209K, 2209K)
-
Spherical roller bearings (e.g., 22209K)
Used In:
-
Agricultural equipment
-
Pumps and motors
-
Industrial gearboxes
-
Fans, compressors, and mining/construction machinery
