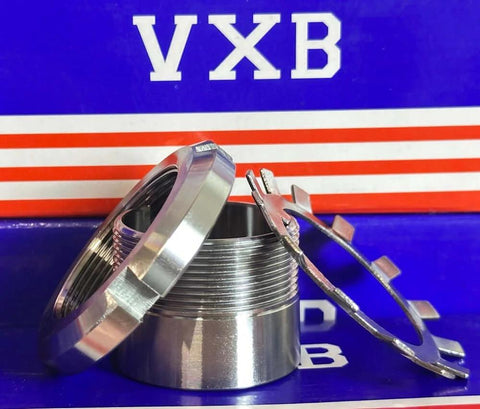

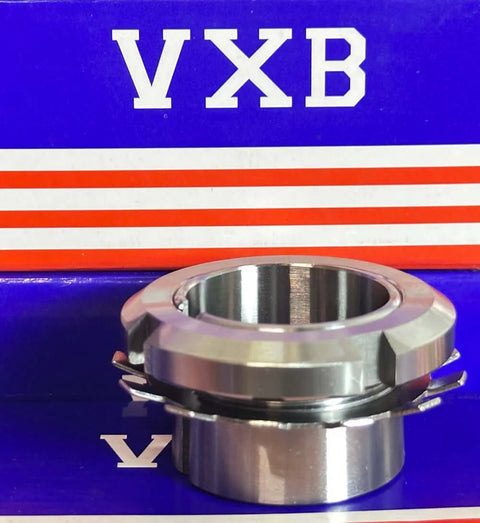

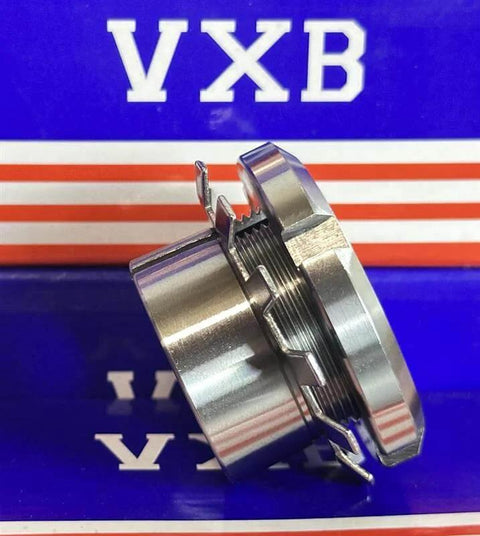

H214 70mm Adapter Sleeve w/Lock Nut & Washer
$57.06 CAD
$77.04 CADyou save $19.98 CAD
SKU: H214-Adapter-Sleeve
UPC:
UPC:
🔩 H214 Adapter Sleeve - Technical Specifications
| Parameter | Value |
|---|---|
| Designation | H214 |
| Suitable Shaft Diameter (d) | 70 mm |
| Bore Diameter (d1) | 75 mm |
| Thread Size (G) | M70 × 2 |
| Sleeve Length (B1) | ~56 mm |
| Lock Nut | KM14 |
| Lock Washer | MB14 |
| Taper | 1:12 |
| Material | High-strength steel |
| Compatible Bearings | 1214K, 2214K, 1314K |
| Standards | ISO 2982-1 / DIN 5415 |
✅ Application Overview
-
Used to mount 1:12 tapered bore bearings onto cylindrical shafts.
-
Ideal for self-aligning ball bearings and spherical roller bearings.
-
Provides secure positioning with KM14 lock nut and MB14 lock washer.
