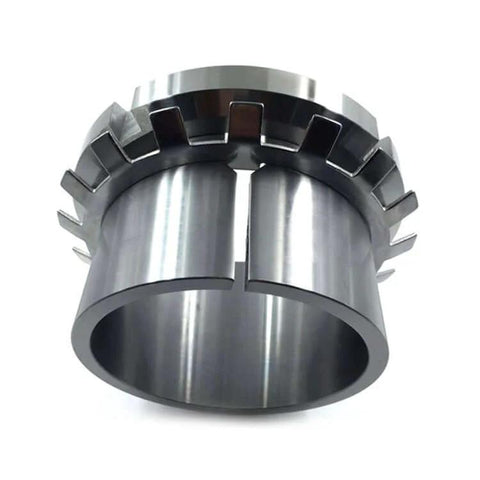

H217 75mm Bearing Housings Adapter Sleeves w/Lock Nut & Washer
$57.06 CAD
$77.04 CADyou save $19.98 CAD
SKU: H217-Adapter-Sleeves
UPC:
UPC:

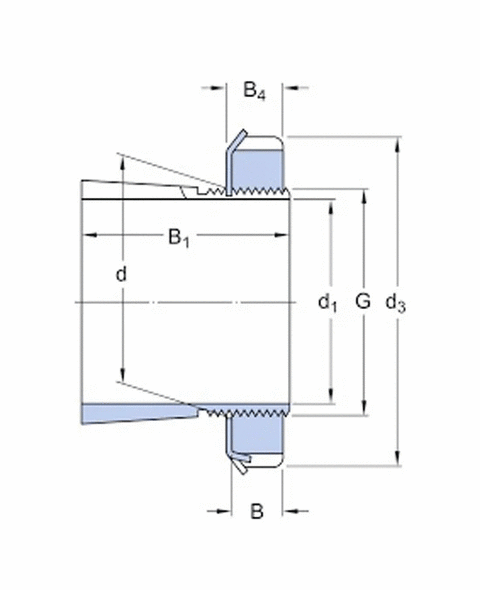

H217 Adapter Sleeve - Specifications
| Parameter | Value |
|---|---|
| Designation | H217 |
| Suitable Shaft Diameter (d) | 75 mm |
| Adapter Sleeve Bore Diameter (d1) | 85 mm |
| Thread (G) | M85×2 |
| Width (B1) | ~52 mm |
| Lock Nut | KM 17 |
| Locking Washer | MB 17 |
| Mass (approx.) | 1.44 kg |
