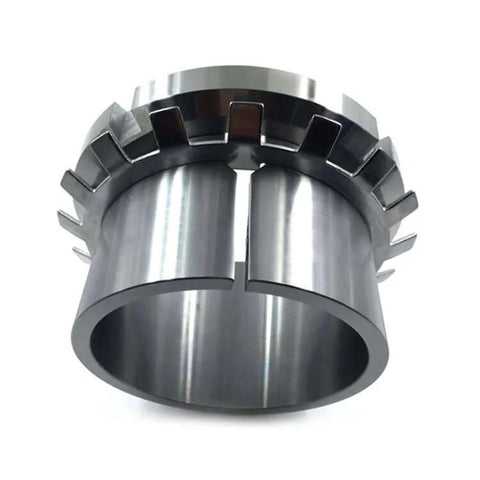

H218 Bearing Housings Adapter Sleeves w/Lock Nut & Washer
$76.10 CAD
$102.73 CADyou save $26.63 CAD
SKU: H218-Adapter-Sleeve
UPC:
UPC:

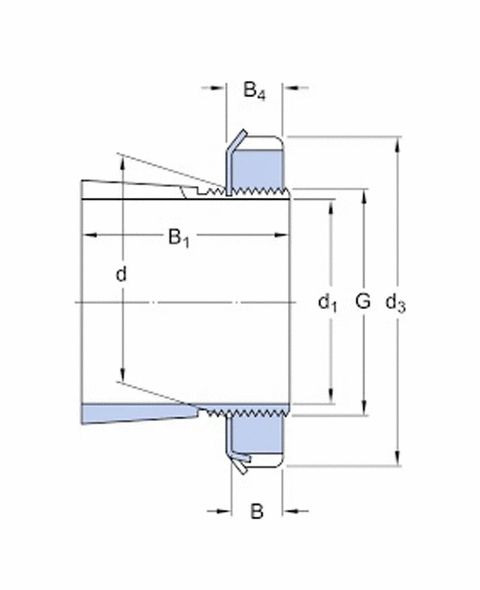

H218 Adapter Sleeve Specifications:
| Parameter | Value |
|---|---|
| Designation | H218 |
| Suitable Shaft Diameter (d) | 80 mm |
| Adapter Sleeve Bore Diameter (d1) | 85 mm |
| Thread (G) | M85×2 |
| Width (B1) | ~58 mm |
| Lock Nut Designation | KM18 |
| Lock Washer Designation | MB18 |
