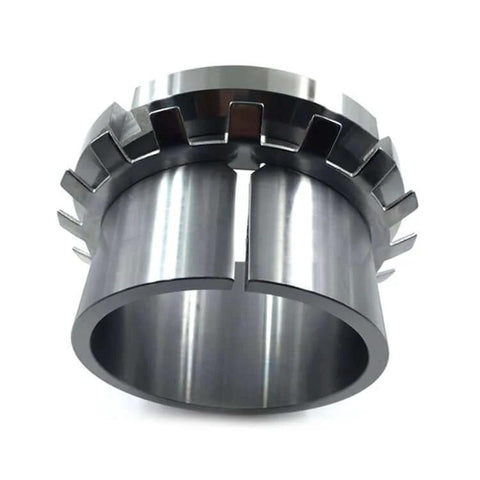

H220 Bearing Housing Adapter Sleeve with Lock Nut & Washer
$76.10 CAD
$102.73 CADyou save $26.63 CAD
SKU: H220-Adapter-Sleeve
UPC:
UPC:
H220 Adapter Sleeve Specifications
| Feature | Specification |
|---|---|
| Adapter Sleeve Designation | H220 |
| Suitable Shaft Diameter (d) | 90 mm |
| Bore Diameter of Sleeve (d1) | 95 mm |
| Thread (G) | M95 × 2 |
| Sleeve Width (B1) | ~62 mm |
| Lock Nut Designation | KM20 |
| Lock Washer Designation | MB20 |
| Material | Hardened carbon steel |
| Commonly Used With Bearings | 1220K, 2220K, 1320K, etc. |
| Installation | For mounting tapered bore bearings on cylindrical shafts |
This sleeve simplifies mounting and dismounting bearings while ensuring a secure fit on straight shafts.
Let me know if you need a PDF datasheet, CAD file, or torque specs for the KM20 lock nut.
