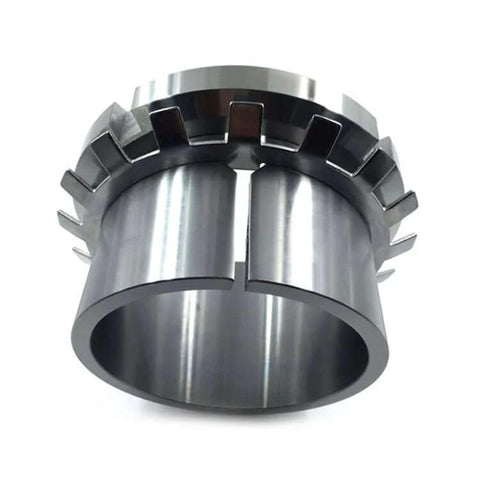

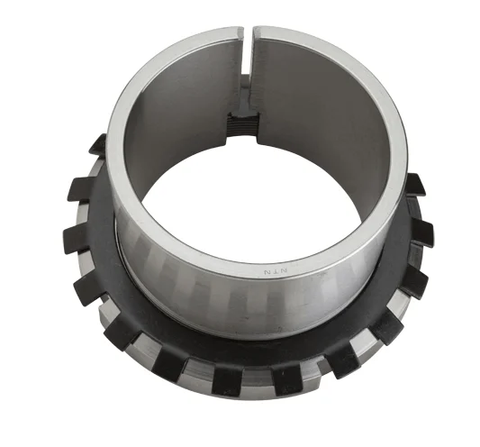

H222 Bearing Adapter Sleeve with Lock Nut & Washer
$76.10 CAD
$102.73 CADyou save $26.63 CAD
SKU: H222-Adapter-Sleeve
UPC:
UPC:

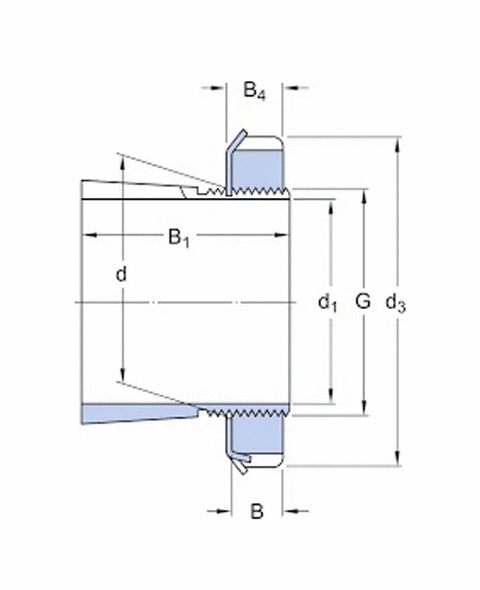

H222 Adapter Sleeve Specifications
| Parameter | Value |
|---|---|
| Designation | H222 |
| Suitable Shaft Diameter (d) | 100 mm |
| Adapter Sleeve Bore (d1) | 110 mm |
| Thread (G) | M100×2 |
| Width (B1) | ~60 mm |
| Lock Nut | KM22 |
| Lock Washer | MB22 |
| Weight (approx.) | ~2.65 kg |
| Material | Hardened Steel |
| Use | For self-aligning ball or spherical roller bearings with tapered bore (1:12) |
