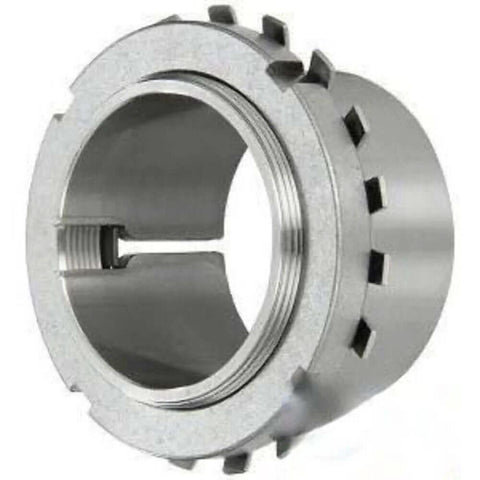

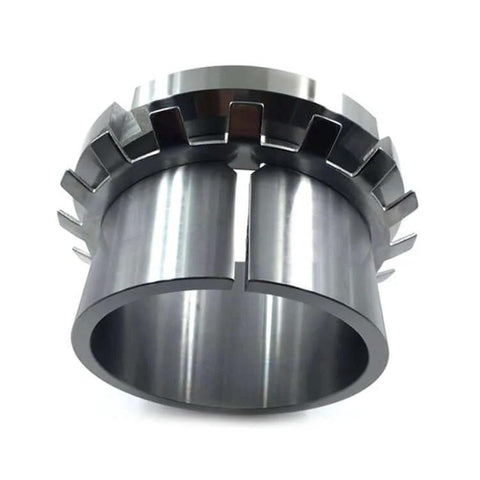

H2305 Bearing Adapter Sleeve with Lock Nut & Washer
$38.03 CAD
$51.34 CADyou save $13.31 CAD
SKU: H2305-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2305
Type: Adapter Sleeve with Lock Nut & Washer
📐 Specifications:

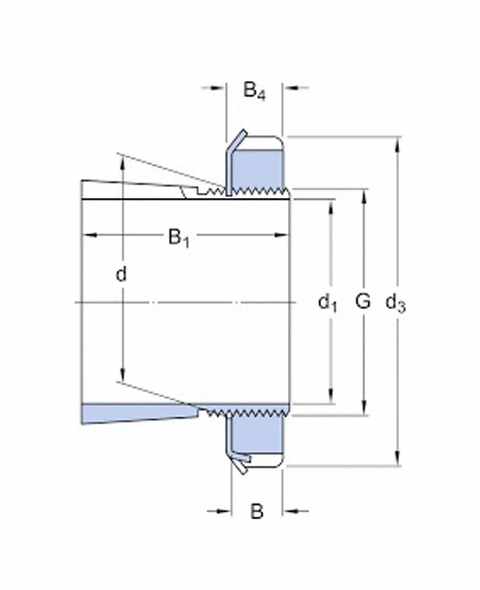

| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 20 mm |
| Adapter Sleeve Bore (d₁) | 25 mm |
| Thread (G) | M20×1 |
| Width (B₁) | ~24 mm |
| Lock Nut | KM05 |
| Lock Washer | MB05 |
⚙️ Application:
Used for mounting bearings with a tapered bore onto a cylindrical shaft, typically in plummer block housings or bearing units.
