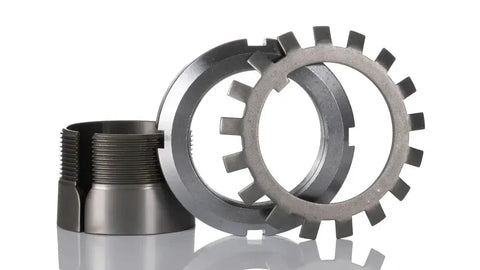

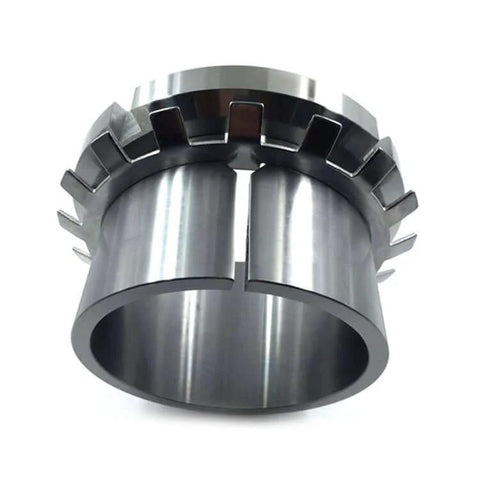

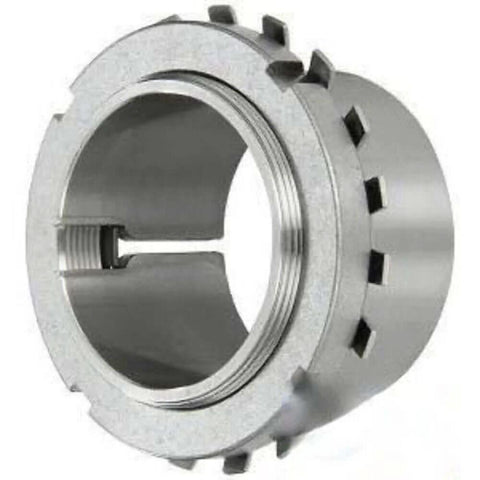

H2306 Bearing Adapter Sleeve with Lock Nut & Washer
$38.03 CAD
$51.34 CADyou save $13.31 CAD
SKU: H2306-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2306
Type: Adapter Sleeve with Lock Nut & Washer
📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 25 mm |
| Bore Diameter of Sleeve (d₁) | 30 mm |
| Thread (G) | M25×1.5 |
| Width (B₁) | ~28 mm |
| Lock Nut | KM06 |
| Lock Washer | MB06 |
⚙️ Application:
-
Used for mounting tapered bore bearings on cylindrical shafts.
-
Commonly installed in plummer block housings or bearing units for light to medium-duty applications.
