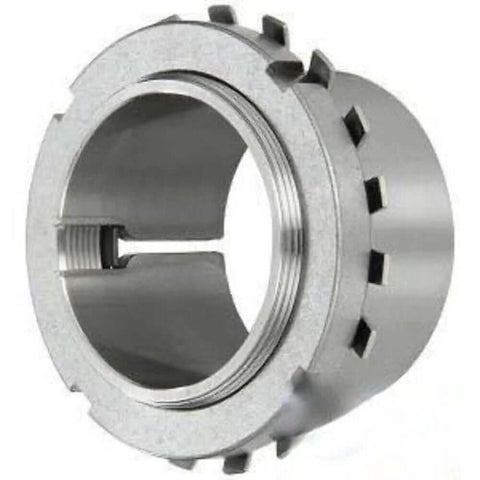

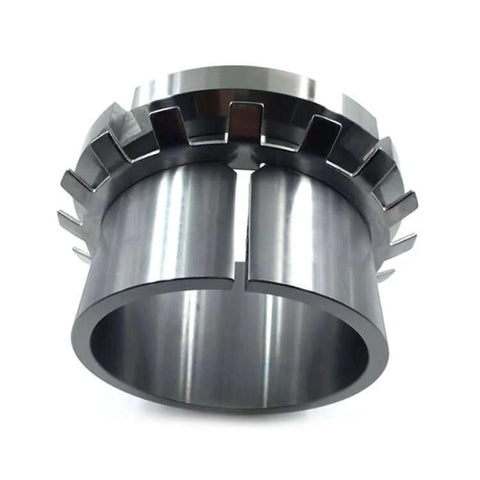

H2307 Bearing Adapter Sleeve with Lock Nut & Washer
$38.03 CAD
$51.34 CADyou save $13.31 CAD
SKU: H2307-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2307
Type: Adapter Sleeve with Lock Nut & Washer

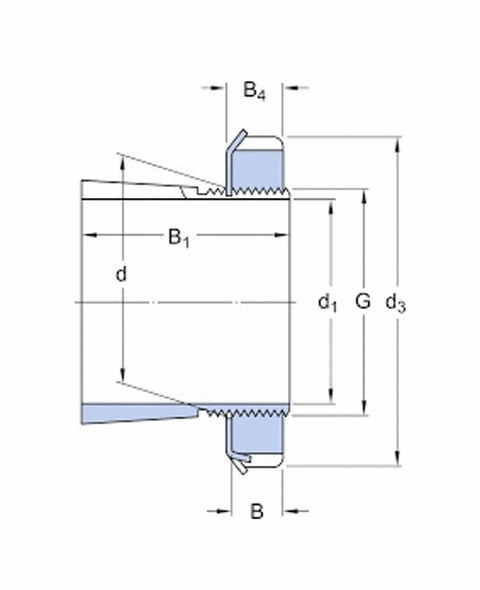

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 30 mm |
| Bore Diameter of Sleeve (d₁) | 35 mm |
| Thread (G) | M30×1.5 |
| Width (B₁) | ~30 mm |
| Lock Nut | KM07 |
| Lock Washer | MB07 |
⚙️ Usage:
-
Designed to mount tapered bore bearings (such as 1207K or 2207K) onto cylindrical shafts.
-
Frequently used in plummer block housings (e.g., SNL507) or similar bearing units.
