Rubber Belts Online

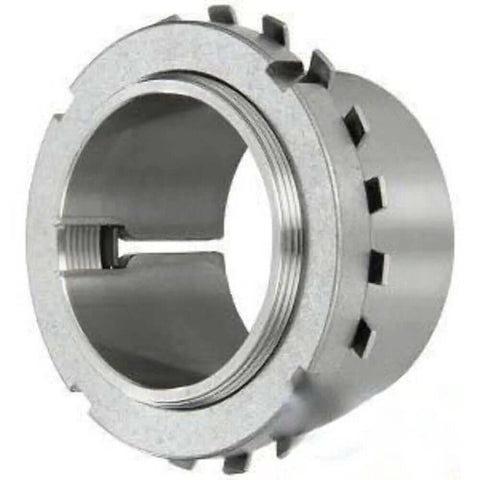

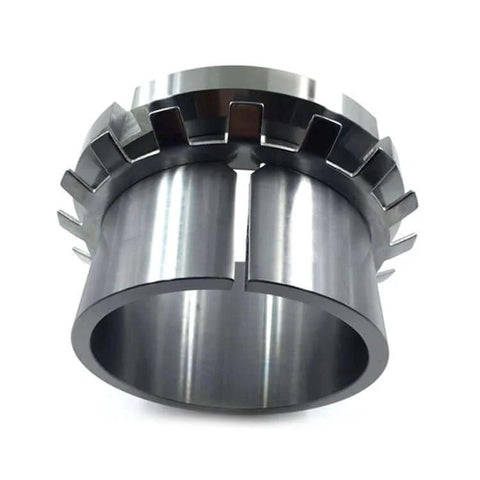

H2308 Bearing Adapter Sleeve with Lock Nut & Washer
$38.03 CAD
$51.34 CADyou save $13.31 CAD
SKU: H2308-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2308

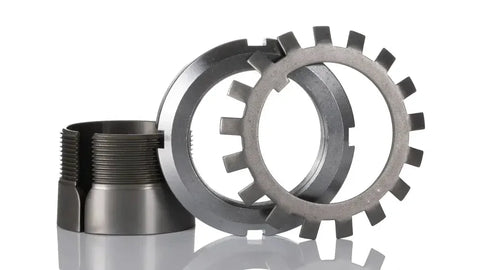

Type: Bearing Adapter Sleeve with Lock Nut & Washer
📐 Technical Specifications:

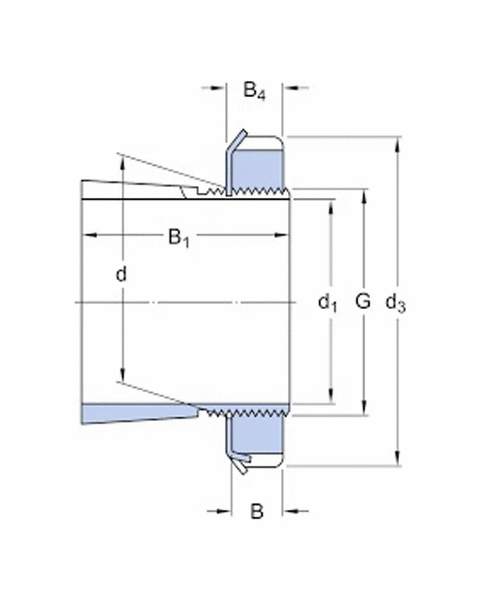

| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 35 mm |
| Bore Diameter of Sleeve (d₁) | 40 mm |
| Thread (G) | M35×1.5 |
| Width (B₁) | ~32 mm |
| Lock Nut | KM08 |
| Lock Washer | MB08 |
⚙️ Applications:
-
Mounts tapered bore bearings (e.g., 1208K, 2208K) onto cylindrical shafts.
-
Commonly used in plummer block housings and other bearing arrangements.
