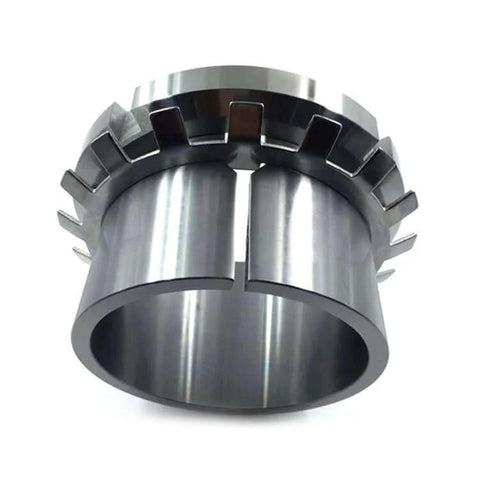

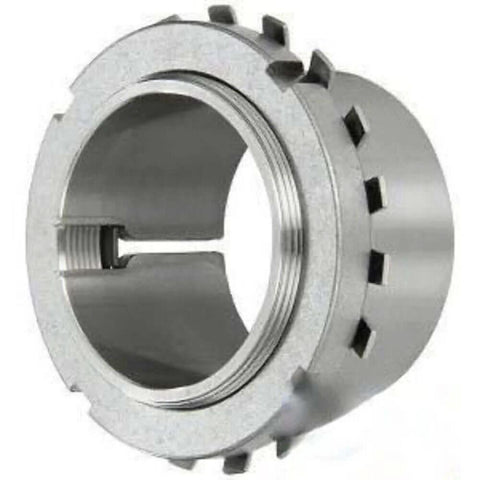

H2309 Bearing Adapter Sleeve with Lock Nut & Washer
$38.03 CAD
$51.34 CADyou save $13.31 CAD
SKU: H2309-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2309

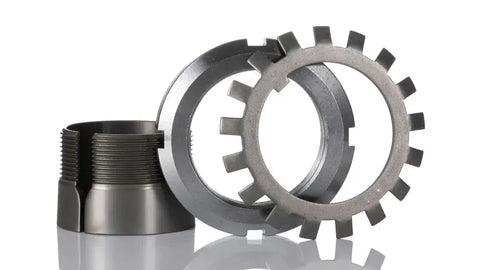

Type: Bearing Adapter Sleeve with Lock Nut & Washer
📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 40 mm |
| Bore Diameter of Sleeve (d₁) | 45 mm |
| Thread (G) | M40×1.5 |
| Width (B₁) | ~35 mm |
| Lock Nut | KM09 |
| Lock Washer | MB09 |
⚙️ Applications:
-
Used for mounting tapered bore bearings like 1209K or 2209K onto cylindrical shafts.
-
Common in plummer block housings such as SNL509, or similar applications requiring secure bearing mounting.
