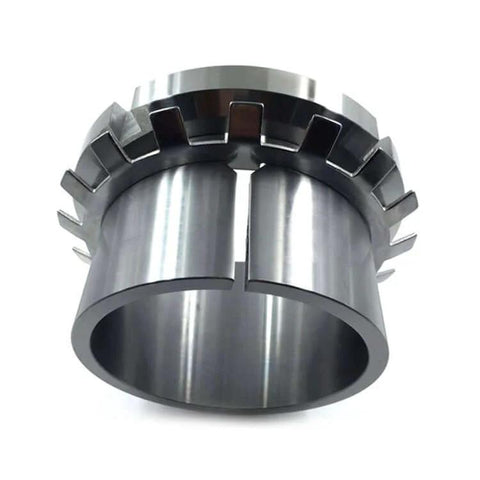

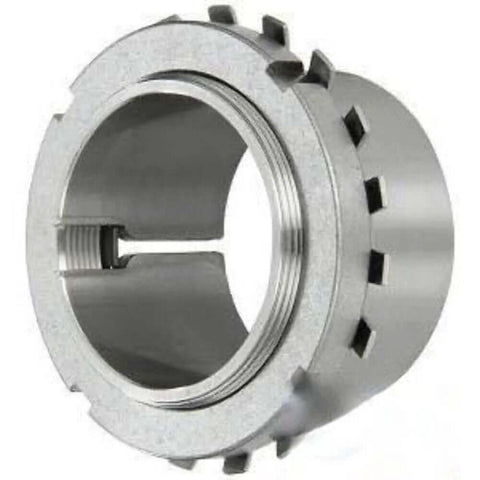

H2310 Bearing Adapter Sleeve with Lock Nut & Washer
$38.03 CAD
$51.34 CADyou save $13.31 CAD
SKU: H2310-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2310

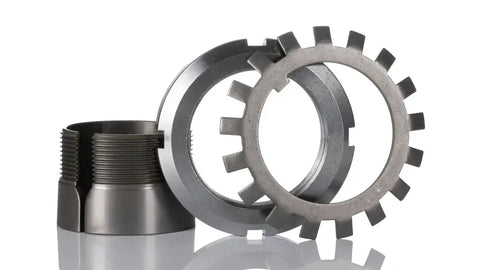

Type: Adapter Sleeve with Lock Nut & Washer

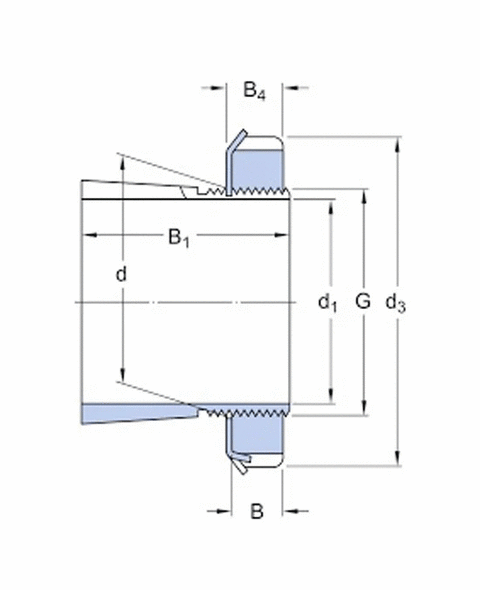

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 45 mm |
| Bore Diameter of Sleeve (d₁) | 50 mm |
| Thread (G) | M45×1.5 |
| Width (B₁) | ~38 mm |
| Lock Nut | KM10 |
| Lock Washer | MB10 |
⚙️ Applications:
-
Used to mount tapered bore bearings (e.g., 1210K, 2210K) onto cylindrical shafts.
-
Ideal for use in bearing housings such as SNL510 or other plummer blocks in industrial machinery.
