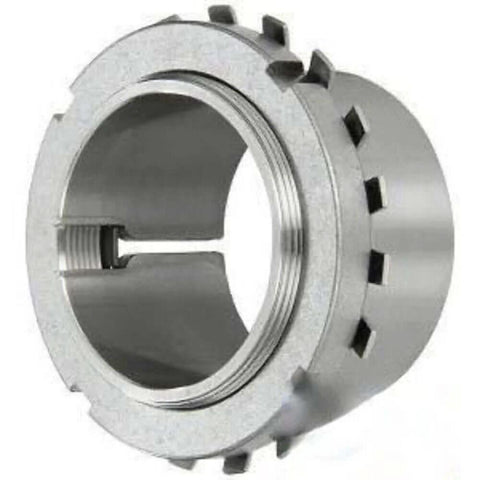

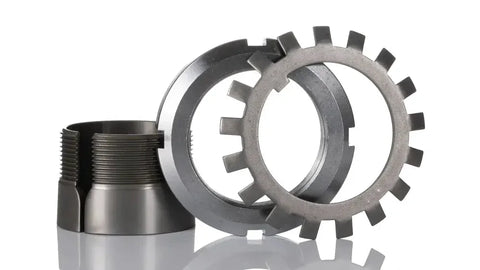

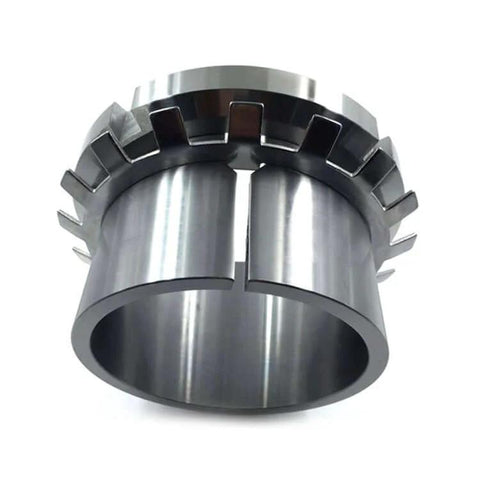

H2313 Bearing Adapter Sleeve with Lock Nut & Washer
$57.06 CAD
$77.04 CADyou save $19.98 CAD
SKU: H2313-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2313
Type: Adapter Sleeve with Lock Nut & Washer

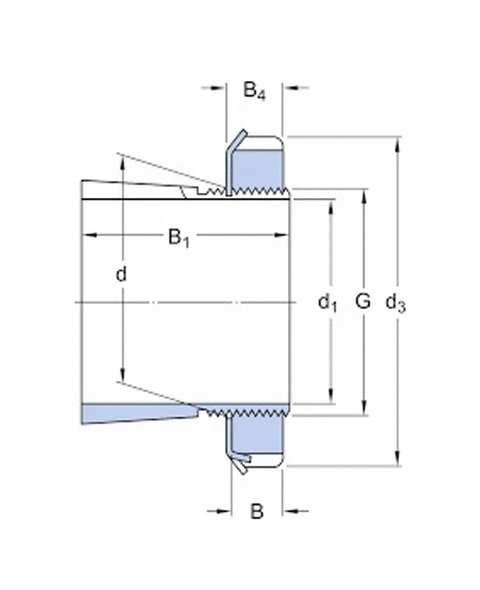

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 60 mm |
| Bore Diameter of Sleeve (d₁) | 65 mm |
| Thread (G) | M60×2 |
| Width (B₁) | ~45 mm |
| Lock Nut | KM13 |
| Lock Washer | MB13 |
⚙️ Applications:
-
Used to mount tapered bore bearings such as 1213K, 2213K, or 1313K onto cylindrical shafts.
-
Commonly used in plummer block housings like SNL513 or equivalent bearing units.
