Rubber Belts Online

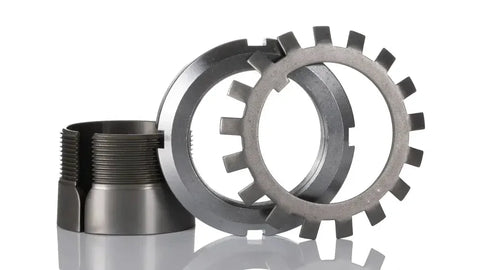

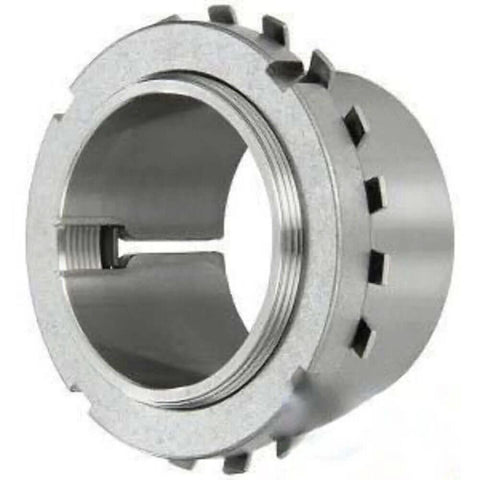

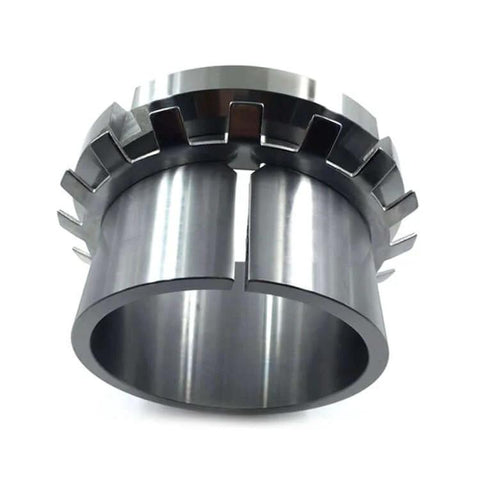

H2314 Bearing Adapter Sleeve with Lock Nut & Washer
$76.10 CAD
$102.73 CADyou save $26.63 CAD
SKU: H2314-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2314
Type: Bearing Adapter Sleeve with Lock Nut & Washer
📐 Technical Specifications:

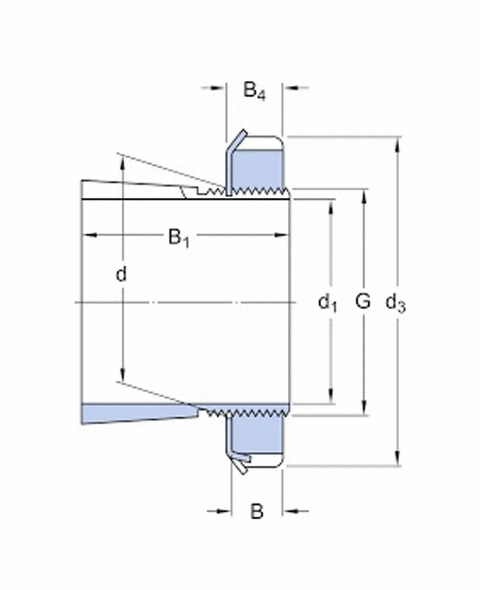

| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 65 mm |
| Bore Diameter of Sleeve (d₁) | 70 mm |
| Thread (G) | M65×2 |
| Width (B₁) | ~48 mm |
| Lock Nut | KM14 |
| Lock Washer | MB14 |
⚙️ Applications:
-
Suitable for mounting tapered bore bearings (e.g., 1214K, 2214K, 1314K) onto cylindrical shafts.
-
Commonly used with plummer block housings such as SNL514 or similar.
