H2317 Bearing Adapter Sleeve with Lock Nut & Washer
$95.13 CAD
$128.44 CADyou save $33.31 CAD
SKU: H2317-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2317

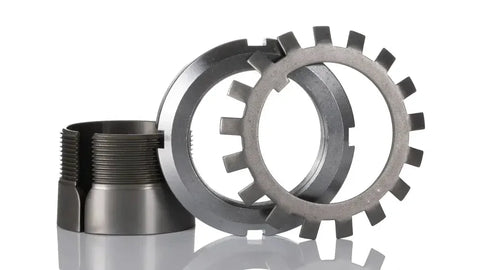

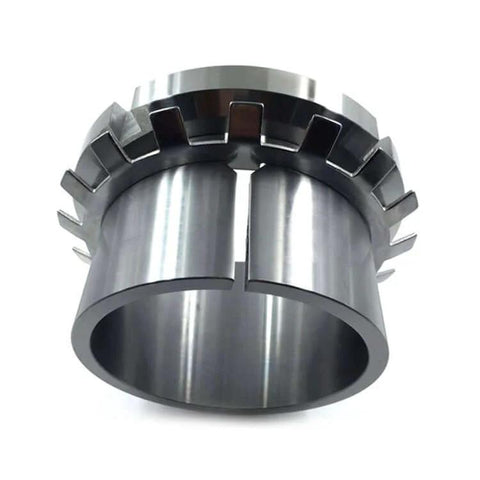

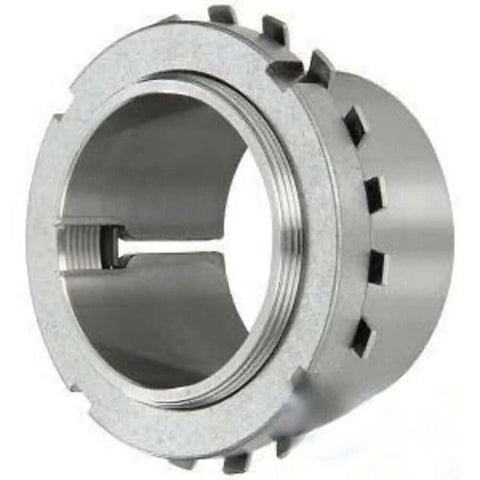

Type: Bearing Adapter Sleeve with Lock Nut & Washer

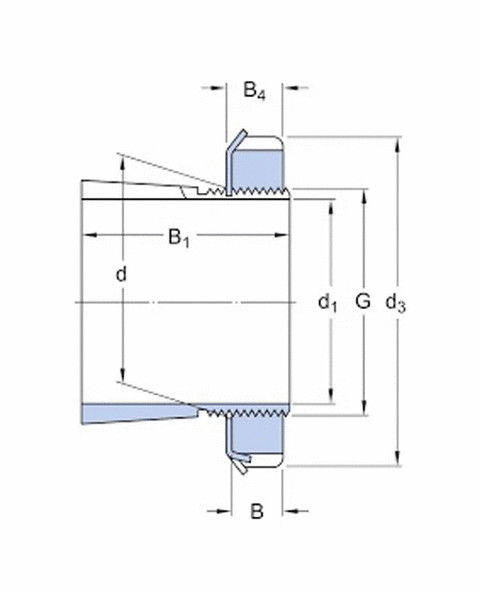

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 75 mm |
| Bore Diameter of Sleeve (d₁) | 85 mm |
| Thread (G) | M80×2 |
| Width (B₁) | ~55 mm |
| Lock Nut | KM17 |
| Lock Washer | MB17 |
⚙️ Applications:
-
Designed for mounting tapered bore bearings (e.g., 1217K, 2217K, 1317K) onto cylindrical shafts.
-
Commonly used with plummer block housings like SNL517 or equivalents in heavy-duty and general industrial machinery.
