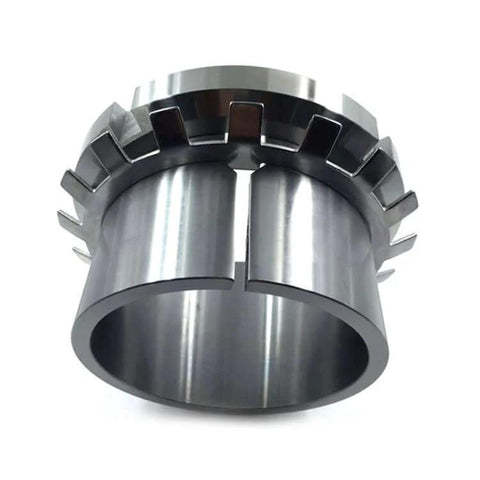

Bearing adapter sleeve H2318 with lock nut and washer, steel, external toothed gear ring

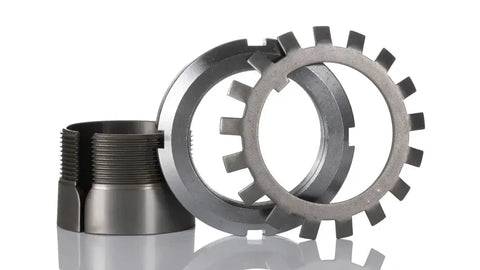

H2318 bearing adapter sleeve with lock nut and washer, metal gray; threaded collar and two toothed rings.
H2318 bearing adapter sleeve with lock nut and washer, cross-section diagram; gray sleeve and blue components.
Rubber Belts Online

H2318 Bearing Adapter Sleeve with Lock Nut & Washer


$114.17 CAD $154.13 CADyou save $39.96 CAD
SKU: H2318-Adapter-Sleeve
UPC:







🔩 Designation: H2318

Type: Bearing Adapter Sleeve with Lock Nut & Washer

📐 Technical Specifications:

Parameter Value
Suitable Shaft Diameter (d) 80 mm
Bore Diameter of Sleeve (d₁) 90 mm
Thread (G) M85×2
Width (B₁) ~58 mm
Lock Nut KM18
Lock Washer MB18

⚙️ Applications:

  • Used for mounting tapered bore bearings such as 1218K, 2218K, or 1318K onto cylindrical shafts.

  • Commonly installed in plummer block housings like SNL518 or similar industrial bearing housings.
