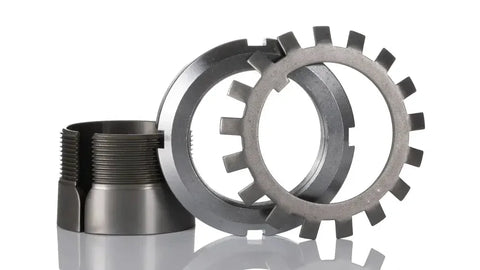

H2319 Bearing Adapter Sleeve with Lock Nut & Washer
$114.17 CAD
$154.13 CADyou save $39.96 CAD
SKU: H2319-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2319
Type: Bearing Adapter Sleeve with Lock Nut & Washer

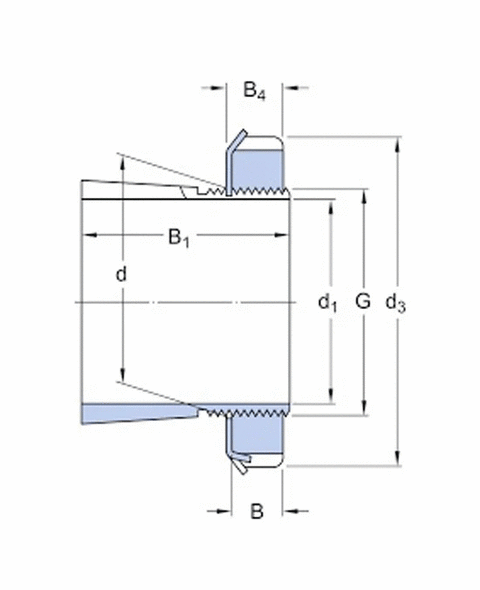

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 85 mm |
| Bore Diameter of Sleeve (d₁) | 95 mm |
| Thread (G) | M90×2 |
| Width (B₁) | ~60 mm |
| Lock Nut | KM19 |
| Lock Washer | MB19 |
⚙️ Applications:
-
Designed for mounting tapered bore bearings like:
-
1219K
-
2219K
-
1319K
-
-
Onto cylindrical shafts in industrial applications.
-
Commonly used in plummer block housings such as SNL519, and often found in:
-
Industrial fans
-
Gear units
-
Electric motors
-
Mining and material handling equipment
-
