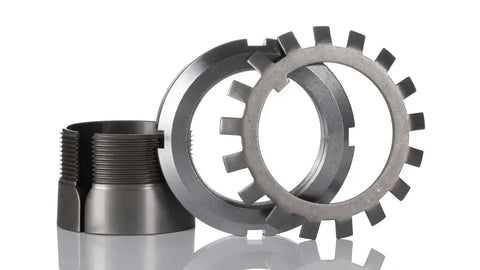

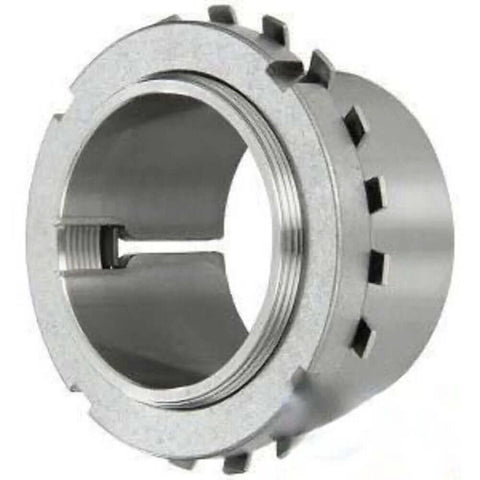

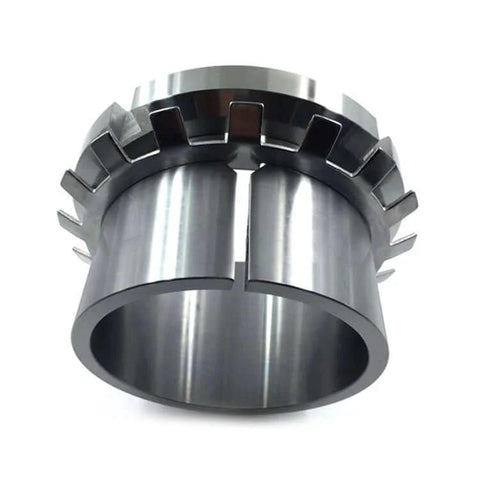

H2320 Bearing Adapter Sleeve with Lock Nut & Washer
$190.31 CAD
$256.92 CADyou save $66.61 CAD
SKU: H2320-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2320
Type: Bearing Adapter Sleeve with Lock Nut & Washer

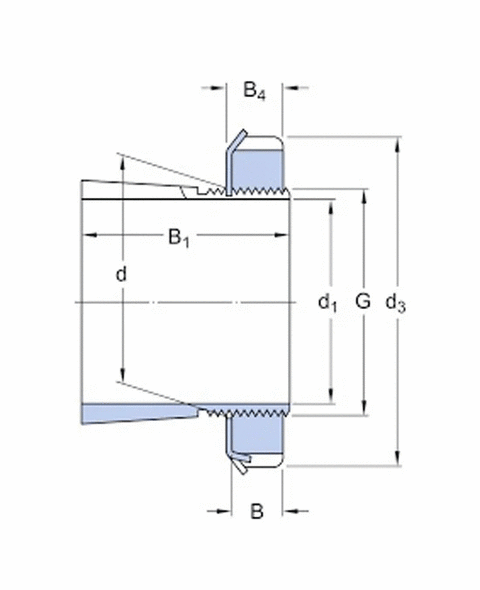

📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 90 mm |
| Bore Diameter of Sleeve (d₁) | 100 mm |
| Thread (G) | M95×2 |
| Width (B₁) | ~63 mm |
| Lock Nut | KM20 |
| Lock Washer | MB20 |
⚙️ Applications:
-
Used to mount tapered bore bearings such as:
-
1220K
-
2220K
-
1320K
-
-
Onto cylindrical shafts.
-
Typically used in plummer block housings like SNL520 and found in:
-
Industrial pumps and motors
-
Gearboxes
-
Conveyor systems
-
Heavy machinery and processing equipment
-
