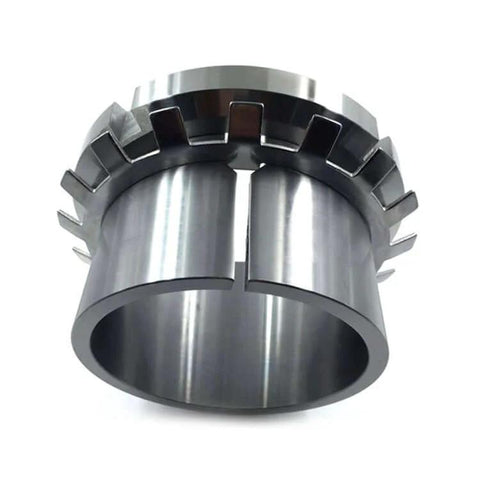

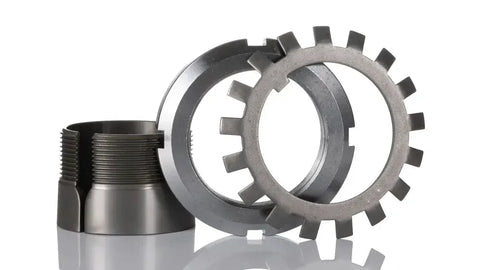

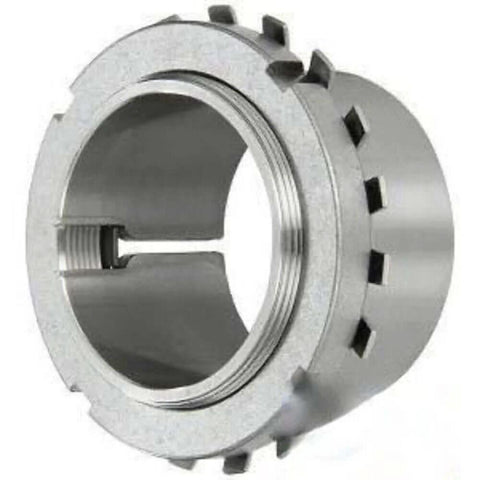

H2322 Bearing Adapter Sleeve with Lock Nut & Washer
$190.31 CAD
$256.92 CADyou save $66.61 CAD
SKU: H2322-Adapter-Sleeve
UPC:
UPC:
🔩 Designation: H2322
Type: Bearing Adapter Sleeve with Lock Nut & Washer
📐 Technical Specifications:
| Parameter | Value |
|---|---|
| Suitable Shaft Diameter (d) | 100 mm |
| Bore Diameter of Sleeve (d₁) | 110 mm |
| Thread (G) | M105×2 |
| Width (B₁) | ~68 mm |
| Lock Nut | KM22 |
| Lock Washer | MB22 |
⚙️ Applications:
-
Designed for mounting tapered bore bearings such as:
-
1222K
-
2222K
-
1322K
-
-
Onto cylindrical shafts.
-
Typically used in plummer block housings like SNL522 and similar industrial equipment.
