H2334 Bearing Adapter Sleeve with Lock Nut & Washer
$723.33 CAD
$976.50 CADyou save $253.17 CAD
SKU: H2334-Adapter-Sleeve
UPC:
UPC:

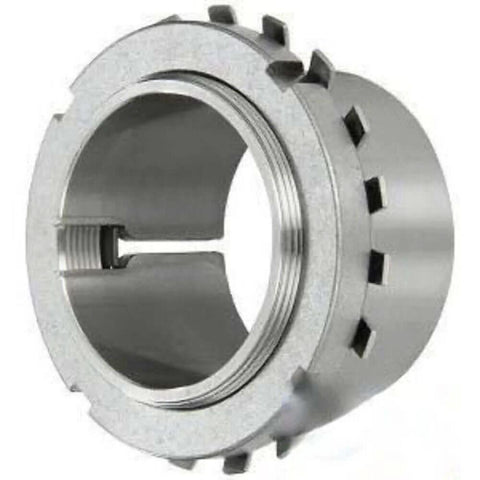

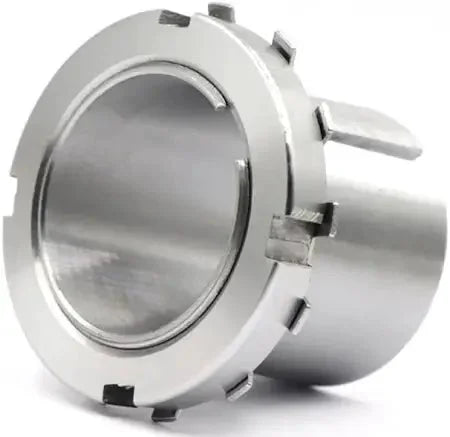

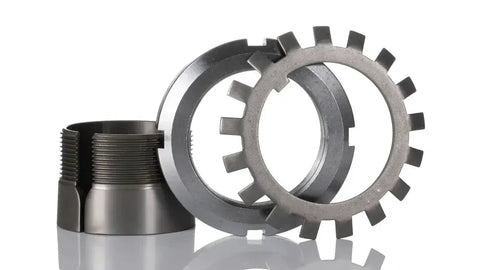

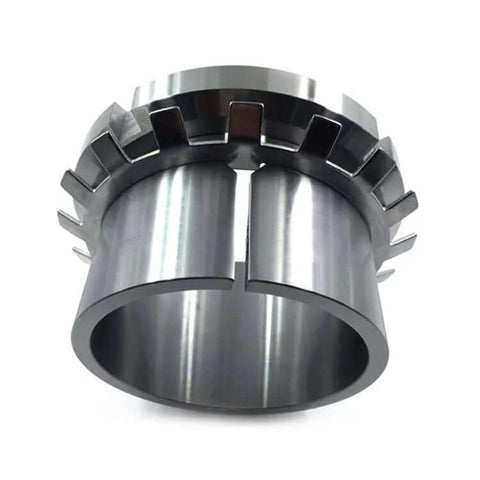

🛠️ H2334 Bearing Adapter Sleeve with Lock Nut & Washer
| Parameter | Specification |
|---|---|
| Designation | H2334 |
| Suitable Shaft Diameter (d) | 150 mm |
| Adapter Sleeve Bore (d1) | ~160 mm |
| Thread Size (Lock Nut) | M160×3 |
| Sleeve Width (B) | Approx. 110-115 mm |
| Lock Nut & Washer | Included (typically KM34 Nut & MB34 Washer) |
| Taper Ratio | 1:12 |
| Material | Case-hardened alloy steel |
| Surface Finish | Precision machined and ground |
| Approximate Weight | ~13-15 kg (varies by manufacturer) |
🔧 Function & Application
The H2334 adapter sleeve is designed for mounting spherical roller bearings with tapered bores (such as 23234K, 22234K) onto cylindrical shafts. It provides a secure fit, easy assembly, and reliable axial locking via the lock nut and washer, preventing slippage and ensuring stable operation.
✅ Typical Applications
-
Heavy-duty machinery in mining and aggregate industries
-
Cement, steel, and paper mills
-
High-capacity industrial fans and blowers
-
Gearboxes, crushers, and conveyor drives
-
Pumps, compressors, and heavy motors
