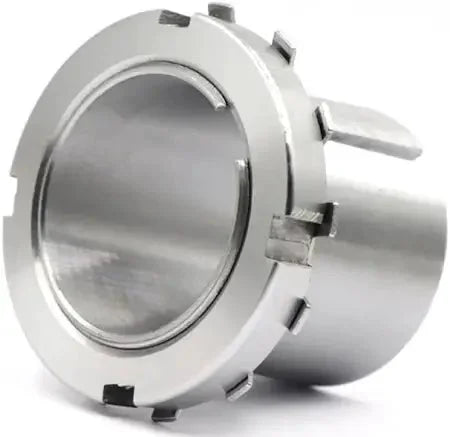

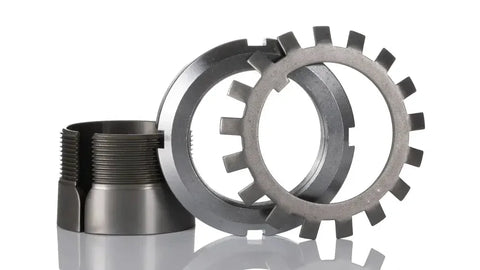

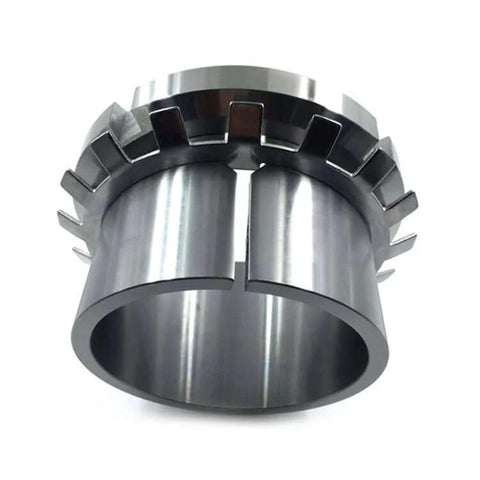

H3024 Bearing Adapter Sleeve with Lock Nut & Washer
$190.31 CAD
$256.92 CADyou save $66.61 CAD
SKU: H3024-Adapter-Sleeve
UPC:
UPC:
H3024 Bearing Adapter Sleeve with Lock Nut & Washer

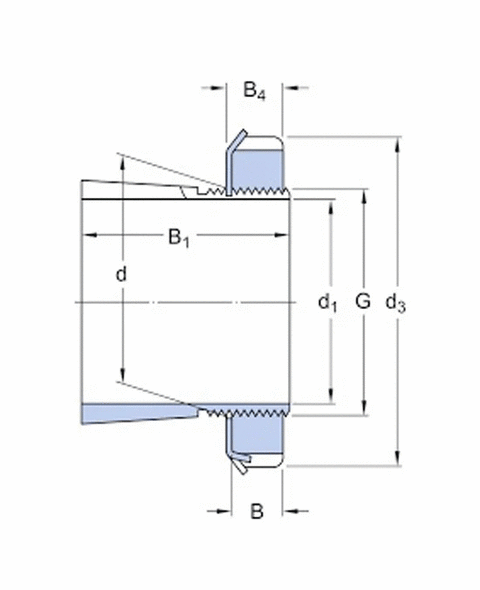

| Parameter | Typical Value / Description |
|---|---|
| Designation | H3024 |
| Suitable Shaft Diameter (d) | Approximately 120 mm |
| Adapter Sleeve Bore Diameter (d1) | Slightly larger than shaft diameter, e.g., ~125 mm |
| Thread Size (Lock Nut) | Typically M125×2 (confirm exact size) |
| Width of Sleeve (B) | Around 80 mm |
| Lock Nut & Washer | Included for secure fixation |
| Material | Hardened steel, case hardened surface |
| Application | For mounting tapered bore bearings on cylindrical shafts |
Summary:
-
Used to mount tapered bore bearings onto cylindrical shafts.
-
Lock nut and washer ensure axial fixation and secure mounting.
-
Common in heavy-duty industrial applications.
