H307 bearing adapter sleeve with lock nut and washer, steel, silver finish

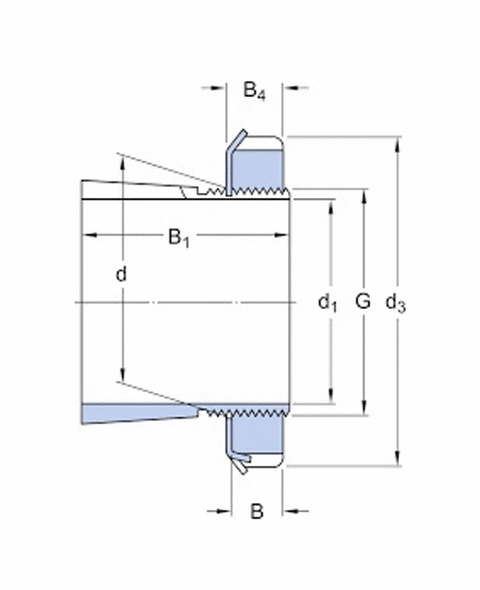

H307 bearing adapter sleeve with lock nut and washer, engineering schematic with dimensions.

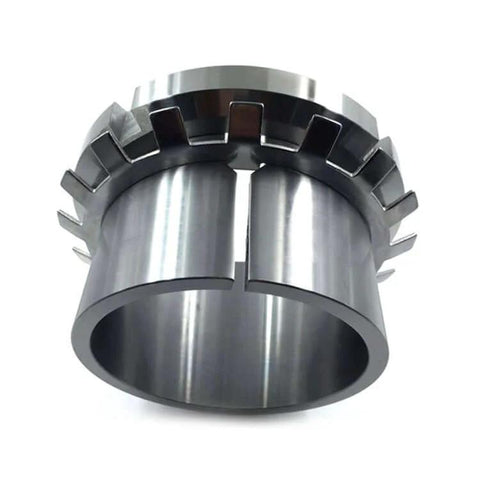

H307 bearing adapter sleeve, metal silver, with splined outer ring
Rubber Belts Online

H307 Bearing Adapter Sleeve with Lock Nut & Washer


$30.41 CAD $41.06 CADyou save $10.65 CAD
SKU: H307-Adapter-Sleeve
UPC:







H307 Bearing Adapter Sleeve

With Lock Nut & Lock Washer

Parameter Specification
Adapter Sleeve Designation H307
Suitable Shaft Diameter (d) 35 mm
Adapter Sleeve Bore (d1) 40 mm
Thread (G) M35 × 1.5
Width (B1) ~40 mm
Lock Nut KM7
Lock Washer MB7
Common Bearing Fit 1207K, 2207K, 1307K, etc.
Material Carbon Steel or Alloy Steel
Standard DIN 5415 / ISO 2982-1
