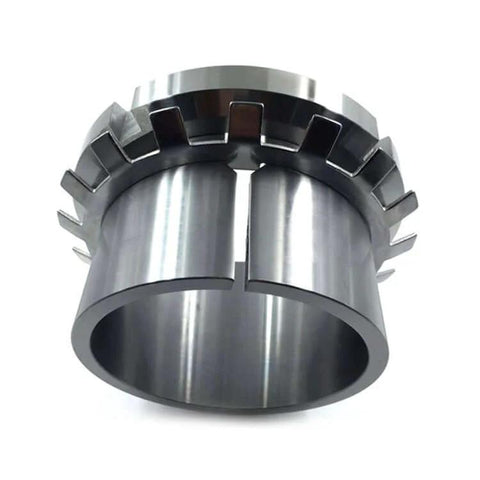

H308 bearing adapter sleeve with lock nut and washer, metal chrome finish.
H308 bearing adapter sleeve with lock nut and washer, silver metal finish

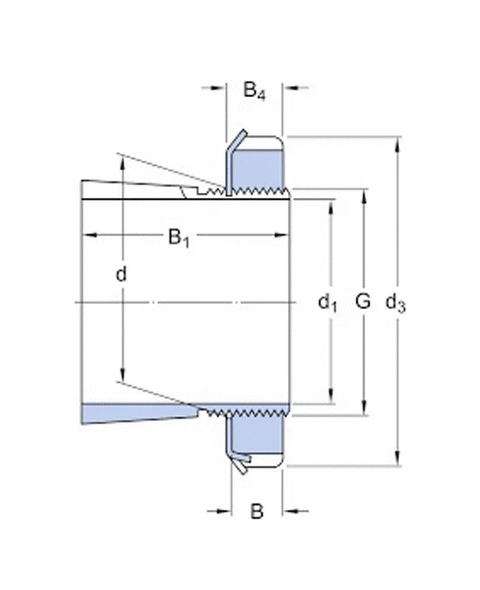

H308 bearing adapter sleeve with blue lock nut and washer, cross-section diagram with dimension labels.
Rubber Belts Online

H308 Bearing Adapter Sleeve with Lock Nut & Washer


$30.41 CAD $41.06 CADyou save $10.65 CAD
SKU: H308-Adapter-Sleeve
UPC:






arameter Specification
Adapter Sleeve Designation H308
Suitable Shaft Diameter (d) 40 mm
Adapter Sleeve Bore (d1) 45 mm
Thread (G) M40 × 1.5
Width (B1) ~43 mm
Lock Nut KM8
Lock Washer MB8
Common Bearing Fit 1208K, 2208K, 1308K, etc.
Material High-quality carbon steel
