H310 Bearing Adapter Sleeve with Lock Nut & Washer
$30.41 CAD
$41.06 CADyou save $10.65 CAD
SKU: H310-Adapter-Sleeve
UPC:
UPC:

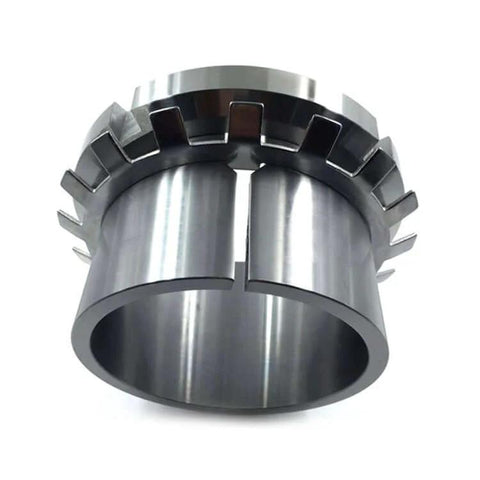

H310 Bearing Adapter Sleeve
With Lock Nut & Lock Washer

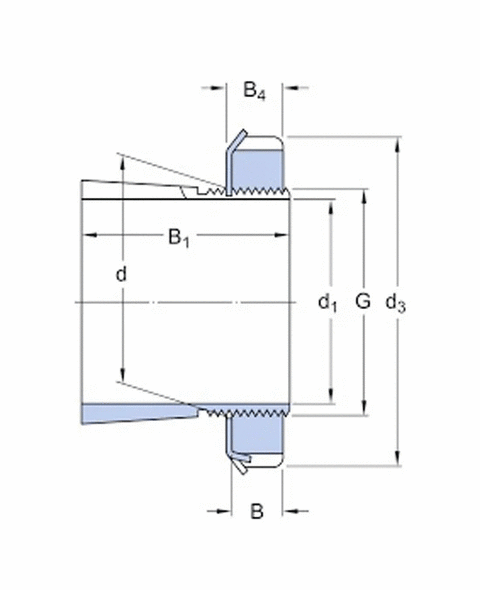

| Parameter | Specification |
|---|---|
| Adapter Sleeve Designation | H310 |
| Suitable Shaft Diameter (d) | 50 mm |
| Adapter Sleeve Bore (d1) | 55 mm |
| Thread (G) | M50 × 1.5 |
| Width (B1) | ~48 mm |
| Lock Nut | KM10 |
| Lock Washer | MB10 |
| Common Bearing Fit | 1210K, 2210K, 1310K, etc. |
| Material | Carbon Steel or Alloy Steel |
