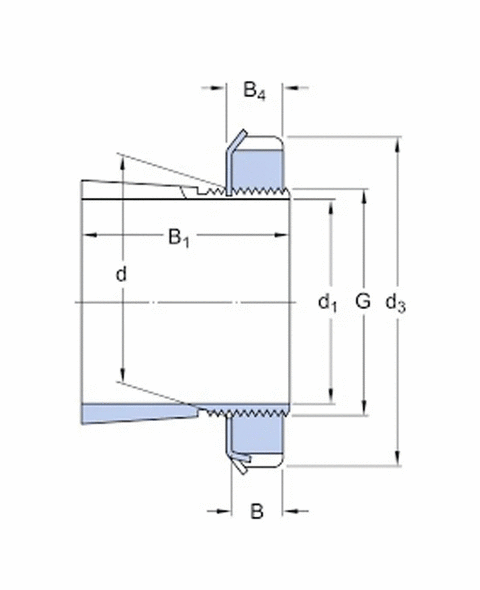

Cross-section of H311 bearing adapter sleeve with blue lock nuts and washers at both ends.

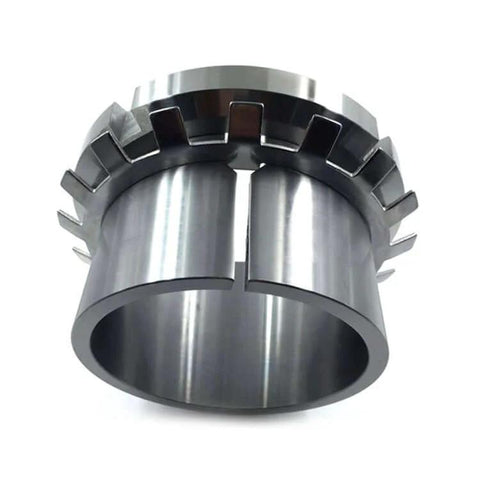

H311 bearing adapter sleeve with lock nut and washer, metal with serrated outer flange (angled view)
Rubber Belts Online

H311 Bearing Adapter Sleeve with Lock Nut & Washer


$30.41 CAD $41.06 CADyou save $10.65 CAD
SKU: H311-Adapter-Sleeve
UPC:







H311 Bearing Adapter Sleeve

With Lock Nut & Lock Washer

Parameter Specification
Adapter Sleeve Designation H311
Suitable Shaft Diameter (d) 55 mm
Adapter Sleeve Bore (d1) 60 mm
Thread (G) M55 × 2
Width (B1) ~50 mm
Lock Nut KM11
Lock Washer MB11
Common Bearing Fit 1211K, 2211K, 1311K, etc.
Material High-grade carbon or alloy steel
