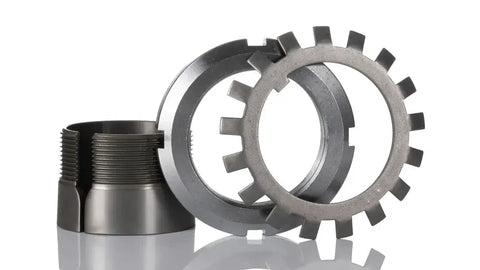

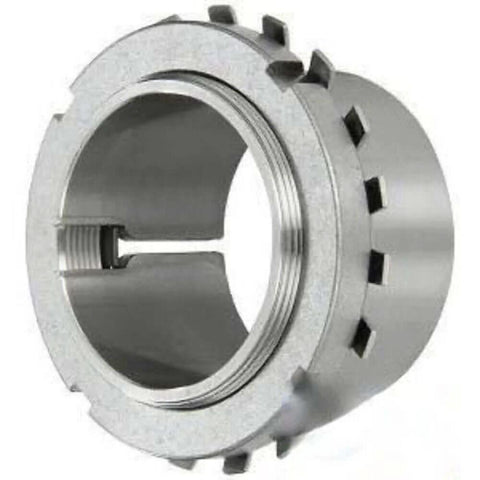

H3126 Bearing Adapter Sleeve with Lock Nut & Washer
$247.41 CAD
$334.01 CADyou save $86.60 CAD
SKU: H3126-Adapter-Sleeve
UPC:
UPC:
🛠️ H3126 Bearing Adapter Sleeve with Lock Nut & Washer
| Parameter | Typical Value / Description |
|---|---|
| Designation | H3126 |
| Suitable Shaft Diameter (d) | 115 mm |
| Adapter Sleeve Bore Diameter (d1) | ~120 mm (depending on manufacturer) |
| Thread Size (Lock Nut) | M120×2 |
| Sleeve Width (B) | Approx. 80-85 mm |
| Lock Nut & Lock Washer | Included (KM26 Nut, MB26 Washer typically) |
| Material | High-quality, case-hardened steel |
| Surface Finish | Precision ground for smooth mounting |
| Approximate Weight | 6.0 - 7.5 kg (varies by brand) |
🔧 Function & Application
The H3126 adapter sleeve is designed to mount tapered bore bearings onto cylindrical shafts, creating a secure mechanical fit. It simplifies the installation and removal of bearings without the need for shaft machining or other modifications.
✅ Common Applications:
-
Electric motors and drives
-
Heavy-duty conveyor systems
-
Industrial gearboxes
-
Fans, blowers, and pumps
-
Mining, steel, and construction equipment
The lock nut and washer hold the bearing firmly in place, preventing axial movement during operation, especially under high vibration or radial load conditions.
