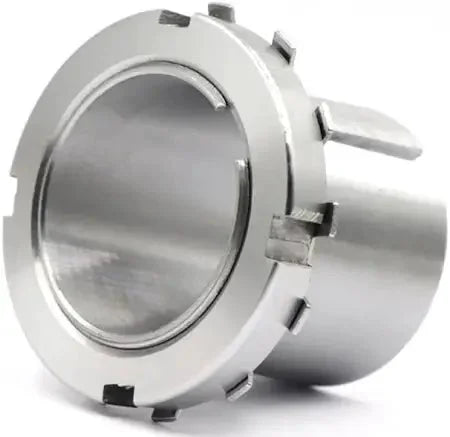

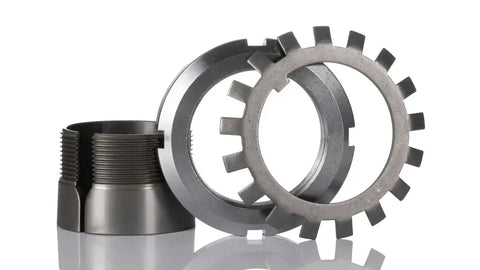

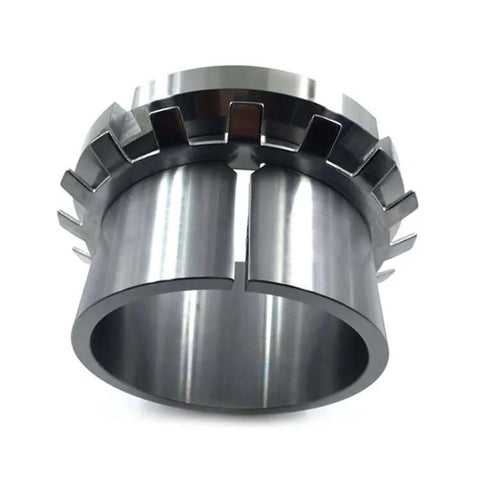

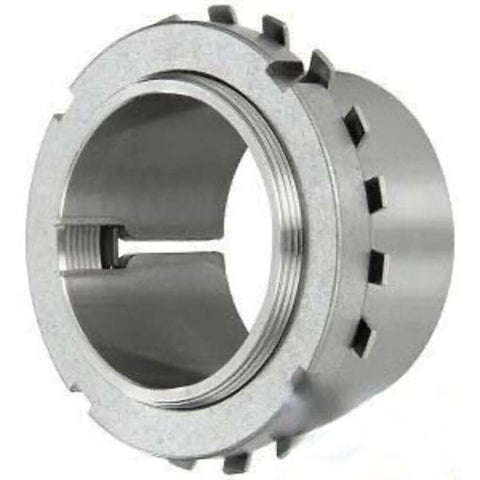

H3132 Bearing Adapter Sleeve with Lock Nut & Washer
$494.87 CAD
$668.07 CADyou save $173.20 CAD
SKU: H3132-Adapter-Sleeve
UPC:
UPC:
🛠️ H3132 Bearing Adapter Sleeve with Lock Nut & Washer
| Parameter | Specification |
|---|---|
| Designation | H3132 |
| Suitable Shaft Diameter (d) | 140 mm |
| Adapter Sleeve Bore (d1) | ~145 mm |
| Thread Size (Lock Nut) | M145×2 |
| Sleeve Width (B) | Approx. 95-100 mm |
| Lock Nut & Washer | Included (Typically KM32 Nut & MB32 Washer) |
| Material | High-quality case-hardened carbon steel |
| Surface Finish | Precision ground |
| Weight | Approx. 9 to 11 kg (varies by brand) |
🔧 Function & Use
The H3132 adapter sleeve is used to mount tapered bore bearings onto cylindrical shafts, offering a secure, self-locking fit that’s both robust and easily adjustable. When the lock nut is tightened, the sleeve expands slightly to press the bearing onto the shaft, creating a tight, secure, and vibration-resistant hold.
✅ Common Applications
-
Heavy industrial machinery
-
Electric motors & gearboxes
-
Conveyors & material handling equipment
-
Fans, blowers, and pumps
-
Mining and aggregate processing
-
Steel mills, paper mills, and cement plants
