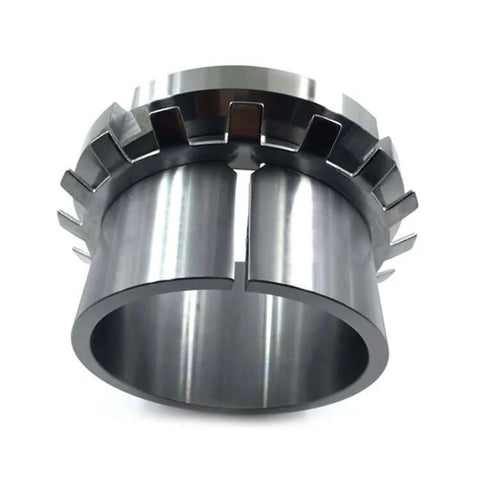

H317 Bearing Adapter Sleeve with Lock Nut & Washer
$76.10 CAD
$102.73 CADyou save $26.63 CAD
SKU: H317-Adapter-Sleeve
UPC:
UPC:
H317 Bearing Adapter Sleeve with Lock Nut & Washer

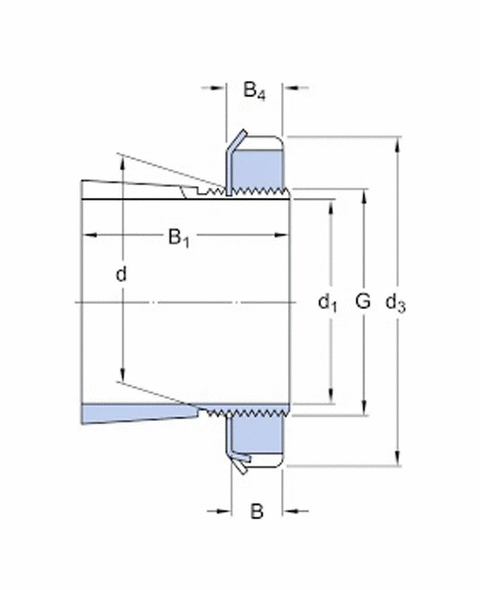

| Parameter | Typical Value / Description |
|---|---|
| Designation | H317 |
| Suitable Shaft Diameter (d) | Around 85 mm (standard size) |
| Adapter Sleeve Bore Diameter (d1) | Slightly larger than shaft diameter, e.g., ~90 mm |
| Thread Size (Lock Nut) | Generally M90×2 (confirm exact size) |
| Width of Sleeve (B) | Approximately 60 mm |
| Lock Nut & Washer | Included for secure mounting |
| Material | Hardened steel, often case hardened surface |
| Application | For mounting tapered bore bearings on cylindrical shafts |
Summary
-
Allows easy mounting and removal of tapered bore bearings.
-
Lock nut and washer secure the sleeve on the shaft.
-
Common in industrial machinery and heavy equipment.
