Hand Operated Pneumatic Knob Switch Valve Three Port Two Position Normally Closed With One Eighth Inch Thread Working Pressure 1.5 To 8 Kgf Per Cm Square No Fuss Compact Size 3.2 By 1.6 By 5.5 Cm

Compact hand-operated pneumatic knob switch valve, 3-way NC
✔️ 3-port, 2-position, NC, 1/8 in thread; 12mm inlet, single unit

The knob valve is a compact, hand-operated control device used in pneumatic systems to direct flow between ports. It’s ideal for simple on-off control in tight spaces, and is commonly mounted on manifolds or inline lines, featuring a normally closed configuration for safe shutoff.

✅ Working Pressure: 1.5-8 Kgf/cm²
✅ Thread Dia: 12 mm / 0.5 in
✅ Port Type: 2-position 3-way, normally closed
✅ Inlet/Outlet Screw Diameter: 8.5 mm / 0.334 in

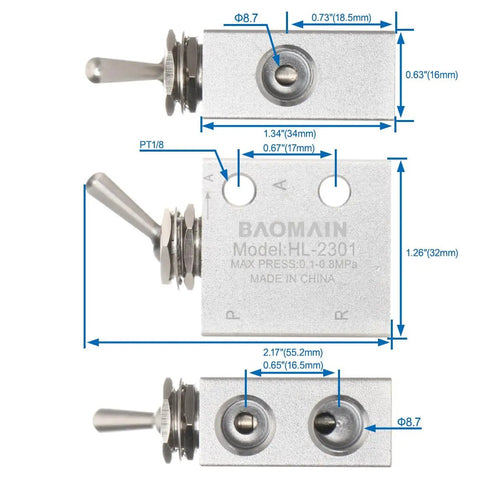

✅ Overall Size: 32 mm x 16 mm x 55 mm (1.26 in x 0.63 in x 2.17 in)
✅ Net Weight: 49 g
✅ Package Content: 1 x Knob Switch Valve

💡 What is a handy hand-operated knob switch valve used for in pneumatic lines? This handy device helps you manually direct flow between ports in simple 3-way, 2-position setups. - Directs flow between ports in a 3-way, 2-position arrangement. - Provides manual control without electricity, great for quick changes. - Suited for low to moderate pressures (1.5-8 Kgf/cm²) in compact builds. - Ideal for prototyping, maintenance tasks, and small DIY projects.
