HD Mini-05 32mm Harmonic Drive Gear Ratio 80:1 - Strain Wave Gear Reducer

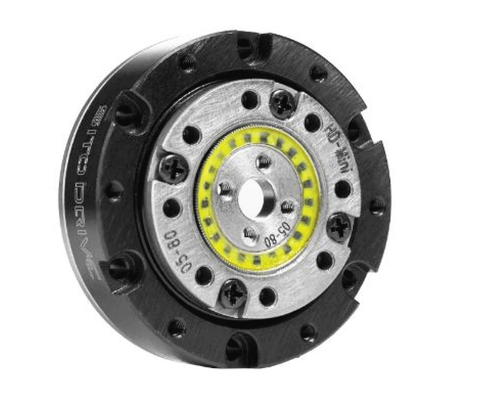

HD-05 Harmonic Gear Reducer 80:1

✔️ High-Torque Strain Wave Gear for Precision Motion Control

The HD-05 80:1 harmonic gear reducer is designed for compact systems that demand higher torque and very fine positioning accuracy. Using only the published performance parameters, this reducer delivers stable torque output, smooth operation, and low backlash at high input speeds.

✅ Gear ratio: 80:1
✅ Rated torque at 2000 rpm: 0.50 Nm
✅ Limit for repeated peak torque: 1.20 Nm
✅ Limit for average torque: 0.82 Nm
✅ Limit for momentary peak torque: 2.20 Nm
✅ Maximum input speed: 10,000 rpm
✅ Limit for average input speed: 6,500 rpm
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 What is an 80:1 harmonic gear reducer used for?
An 80:1 harmonic reducer is typically used in precision robotics, optical positioning systems, compact automation equipment, and high-accuracy actuators where higher torque and finer motion resolution are required.

This 80:1 version delivers strong torque performance while maintaining smooth, controlled, low-backlash motion.
