HD Mini-08 40mm Harmonic Drive Gear Ratio 50:1 - Strain Wave Gear Reducer

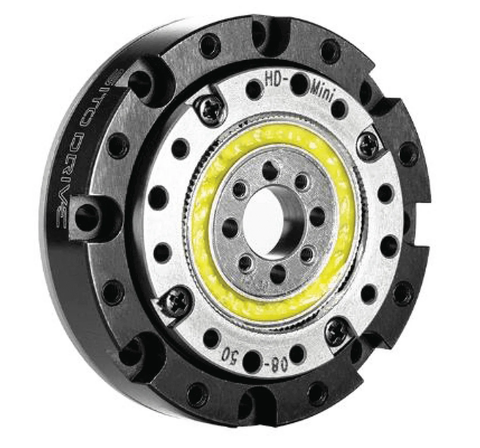

HD-08 Harmonic Gear Reducer 50:1

✔️ High-Torque Strain Wave Gear for Precision Motion Control

The HD-08 50:1 harmonic gear reducer is built for applications that require higher torque and finer positioning accuracy. Based strictly on its performance data, this reducer delivers strong torque capability with smooth motion and low backlash.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 1.6 Nm
✅ Limit for repeated peak torque: 3.1 Nm
✅ Limit for average torque: 2.1 Nm
✅ Limit for momentary peak torque: 6.1 Nm
✅ Maximum input speed: 8,500 rpm
✅ Limit for average input speed: 3,500 rpm
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 When should I choose a 50:1 harmonic gear reducer?
A 50:1 harmonic reducer is ideal when higher torque and improved positioning resolution are needed, such as in robotic joints, gimbals, and compact automation systems.

This 50:1 version delivers higher torque while maintaining smooth, accurate motion.
