HD Mini-11 52mm Harmonic Drive Gear Ratio 100:1 - Strain Wave Gear Reducer

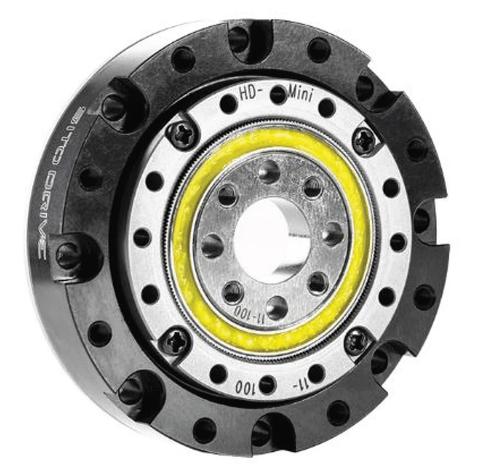

HD-11 Harmonic Gear Reducer 100:1

✔️ High-Reduction Strain Wave Gear for Precision Motion Control

The HD-11 100:1 harmonic gear reducer is designed for systems that demand strong torque output and very fine motion resolution. Using only the table specifications, this reducer provides stable torque delivery with smooth performance and low backlash.

✅ Gear ratio: 100:1
✅ Rated torque at 2000 rpm: 4.8 Nm
✅ Limit for repeated peak torque: 10.5 Nm
✅ Limit for average torque: 8.7 Nm
✅ Limit for momentary peak torque: 23 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 What makes a 100:1 harmonic gear reducer suitable for high precision motion control?
A 100:1 harmonic reducer is commonly used when precise positioning and high torque density are required in compact systems.

This 100:1 version delivers strong torque output while maintaining smooth, low-backlash motion.
