HD Mini-11 52mm Harmonic Drive Gear Ratio 50:1 - Strain Wave Gear Reducer

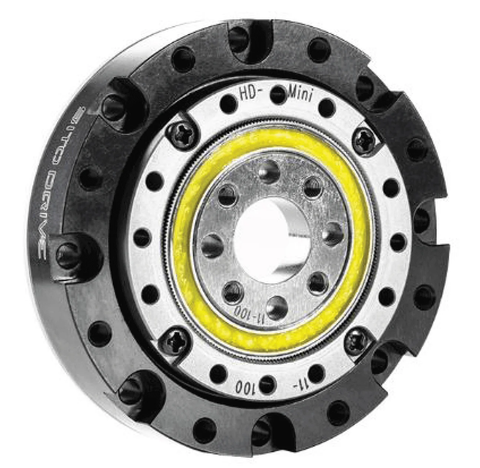

HD-11 Harmonic Gear Reducer 50:1

✔️ Balanced Torque Strain Wave Gear for Robotics Control

The HD-11 50:1 harmonic gear reducer is designed for applications that need higher torque while maintaining smooth and accurate motion. Based strictly on the listed specifications, this reducer supports reliable performance with controlled backlash in servo-driven systems.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 3.2 Nm
✅ Limit for repeated peak torque: 7.8 Nm
✅ Limit for average torque: 5.1 Nm
✅ Limit for momentary peak torque: 15 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 How does a 50:1 harmonic gear reducer support robotic joint movement?
A 50:1 harmonic reducer is often used to balance torque output and motion accuracy in robotic joints and rotating assemblies.

This 50:1 version provides dependable torque handling with smooth, low-backlash rotation.
