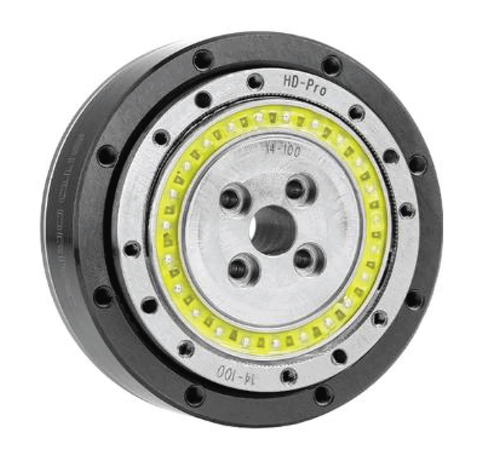

HD-14 Pro Harmonic Gear Reducer 50:1

✔️ Pro-Series Strain Wave Gear for Precision Motion Control

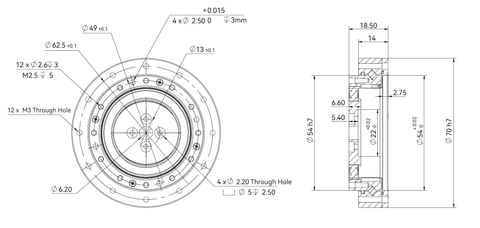

The HD-14 Pro 50:1 harmonic gear reducer is built for precision robotics and automation systems that need smooth motion, dependable torque, and controlled backlash in a compact 70mm frame. Using only the table specifications, this Pro model delivers stable performance for servo driven applications.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 11 Nm
✅ Limit for repeated peak torque: 23 Nm
✅ Limit for average torque: 18 Nm
✅ Limit for momentary peak torque: 48 Nm
✅ Maximum input speed: 7000 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.054 x10^4 kgm^2
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 Why is a Pro series harmonic gear reducer preferred in servo driven automation?

Pro series harmonic reducers are optimized for smoother motion, consistent torque delivery, and reliable backlash control in compact servo systems.

This 50:1 Pro version delivers clean motion control and steady torque for precision automation setups.
