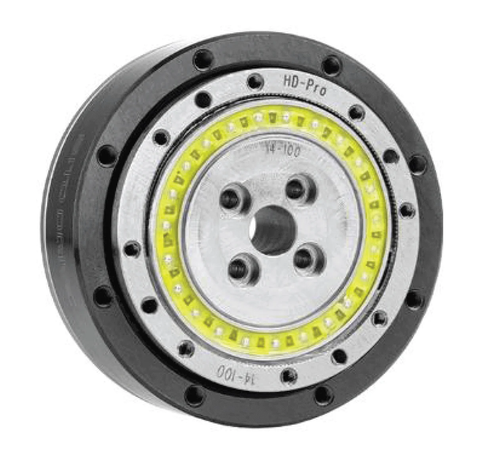

HD-17 Pro Harmonic Gear Reducer 50:1

✔️ Pro-Series Strain Wave Gear for High Torque Precision Control

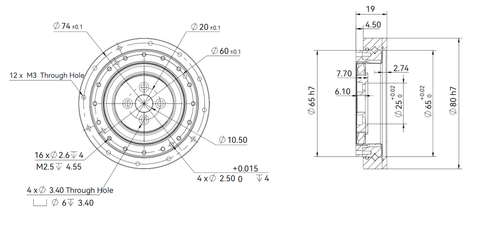

The HD-17 Pro 50:1 harmonic gear reducer is designed for servo driven robotics and automation systems that need higher torque output with smooth, repeatable motion. Using only the table specifications, this Pro model delivers reliable performance and controlled backlash in an 80mm compact frame.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 17 Nm
✅ Limit for repeated peak torque: 39 Nm
✅ Limit for average torque: 24 Nm
✅ Limit for momentary peak torque: 69 Nm
✅ Maximum input speed: 7000 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.09 x10^4 kgm^2
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 Why is a Pro series harmonic gear reducer preferred for higher torque servo applications?

Pro series harmonic reducers are optimized for stable torque delivery, smooth motion, and consistent backlash control in demanding servo driven systems.

This 50:1 Pro version delivers dependable torque handling with clean, controlled motion.
