HD Mini-03 25mm Harmonic Drive Gear Ratio 30:1 - Strain Wave Gear Reducer

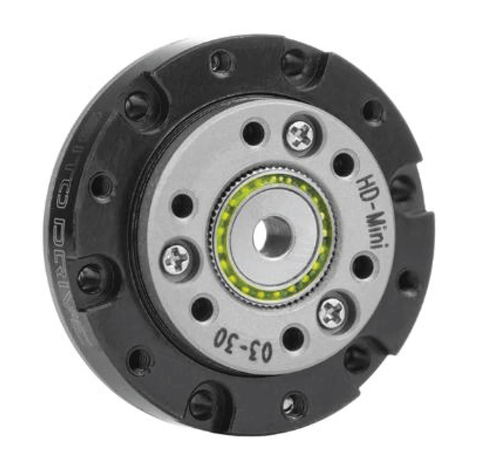

HD Mini-03 Harmonic Gear Reducer 30:1
✔️ Mini Strain Wave Drive for Precision Motion

The HD Mini-03 30:1 delivers smooth, accurate reduction for compact robotic and automation systems. This harmonic gear reducer provides stable torque output and low backlash, making it ideal for high-precision motion control at small scale.

✅ Torque at 2000 rpm: 0.08 Nm
✅ Repeated peak torque limit: 0.15 Nm
✅ Average torque limit: 0.12 Nm
✅ Momentary peak torque limit: 0.25 Nm
✅ Maximum input speed: 10,000 rpm
✅ Recommended average input speed: 6,500 rpm
✅ Moment of inertia: 1×10⁻⁴ kg·m²
✅ Low backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 What is a harmonic reducer used for?
A harmonic reducer is used where high accuracy, low backlash, and strong torque output are needed, such as robotics, gimbals, compact automation tools, and precision motion systems.

This 30:1 model gives clean, controlled movement for lightweight precision designs.
