HD Mini-03 32mm Harmonic Drive Gear Ratio 50:1 - Strain Wave Gear Reducer

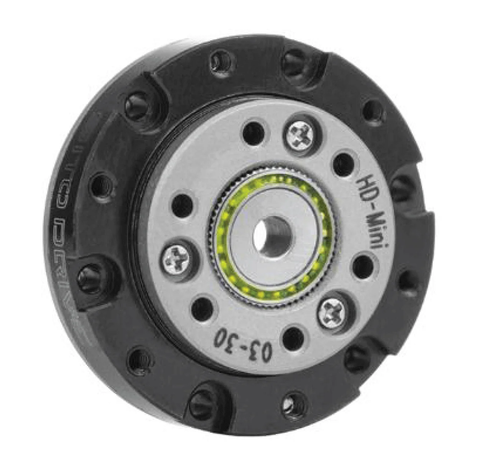

HD Mini-03 Harmonic Gear Reducer 50:1
✔️ Mini Strain Wave Gear for Precision Motion Control

The HD Mini-03 50:1 harmonic gear reducer is designed for compact motion systems that need higher torque with smooth and accurate output. Based strictly on its performance parameters, this reducer delivers stable operation, low backlash, and reliable torque handling at high input speeds.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 0.13 Nm
✅ Limit for repeated peak torque: 0.24 Nm
✅ Limit for average torque: 0.16 Nm
✅ Limit for momentary peak torque: 0.50 Nm
✅ Maximum input speed: 10,000 rpm
✅ Limit for average input speed: 6,500 rpm
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 What applications benefit from a 50:1 harmonic gear reducer?
A 50:1 harmonic reducer is commonly used when higher output torque and finer positioning resolution are required, such as in robotic joints, gimbals, compact actuators, and precision automation systems.

This 50:1 version offers stronger torque capability while maintaining smooth, controlled motion in small-scale precision designs.
