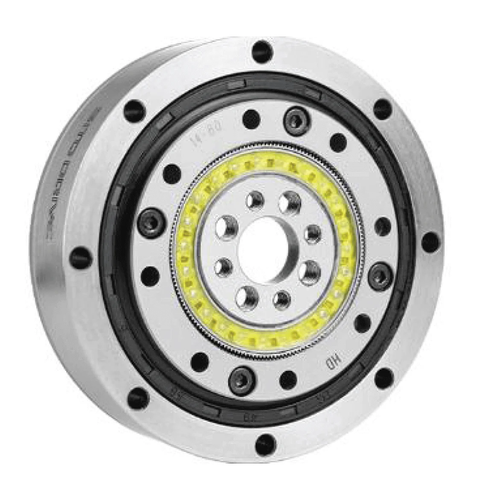

HD-14 Harmonic Gear Reducer 100:1

✔️ High Reduction Strain Wave Gear for Precision Motion Control

The HD-14 100:1 harmonic gear reducer is designed for systems that demand strong torque output and very fine motion resolution. Using only the table specifications, this reducer provides stable torque delivery with smooth performance and low backlash.

✅ Gear ratio: 100:1
✅ Rated torque at 2000 rpm: 7.4 Nm
✅ Limit for repeated peak torque: 19 Nm
✅ Limit for average torque: 10.8 Nm
✅ Limit for momentary peak torque: 40 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.021 x10^4 kgm^2
✅ Backlash: ≤10 arcsec
✅ Delivery time 10 to 15 days

💡 What distinguishes rated torque from peak torque in harmonic gear reducers?

Rated torque defines continuous operation limits, while peak torque covers short duration loads during acceleration or shock events.

This 100:1 version delivers strong torque output with smooth, low backlash motion for precision systems.
